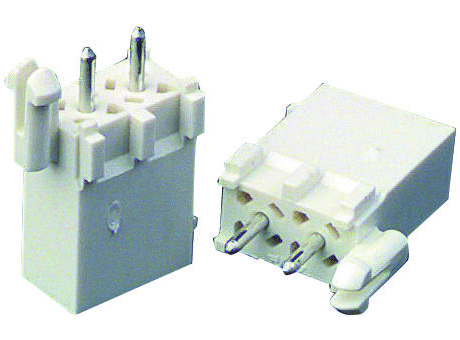

Wire-To-Board Connector, 4.14 mm, 4 Contacts, Plug, Mini Universal MATE-N-LOK Series, Through Hole

Manufacturer	FARNELL
Description	Wire-To-Board Connector, 4.14 mm, 4 Contacts, Plug, Mini Universal MATE-N-LOK Series, Through Hole
Part Number	1-770174-0
Supplier Name	Farnell or Newark
Colour	White
Connector Mounting Orientation	PCB
Contact Material	Brass
Contact Plating	Tin Plated Contacts
Contact Termination	Solder
Contact Termination Type	Through Hole
Gender	Plug
No. of Contacts	4Contacts
No. of Rows	2Rows
Pitch Spacing	4.14mm

Product Range	Mini Universal MATE-N-LOK Series
Termination Method	Solder
Brand Name	AMP - TE CONNECTIVITY
Features	Detent Lock
Connector Type	Plug & Socket
Body Material	Nylon
Approval Category	CSA, UL, VDE
Current per Contact Max	10.5A
Flammability Rating	UL94V-0
Insulation Resistance	100Mohm
Operating Temperature Max	65°C
Operating Temperature Min	20°C
Connector Mounting	PCB Mount
Test Voltage	1500V

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Colour	Connector Mounting Orientation	Contact Material	Contact Plating	Contact Termination	Contact Termination Type	Gender	No. of Contacts	No. of Rows	Pitch Spacing	Product Range	Termination Method	Brand Name	Supplier Name	Features	Connector Type	Body Material	Approval Category	Current per Contact Max	Flammability Rating	Insulation Resistance	Operating Temperature Max	Operating Temperature Min	Connector Mounting	Test Voltage
1	1	1-770174-0	Wire-To-Board Connector, 4.14 mm, 4 Contacts, Plug, Mini Universal MATE-N-LOK Series, Through Hole	White	PCB	Brass	Tin Plated Contacts	Solder	Through Hole	Plug	4Contacts	2Rows	4.14mm	Mini Universal MATE-N-LOK Series	Solder	AMP - TE CONNECTIVITY	Farnell or Newark	Detent Lock	Plug & Socket	Nylon	CSA, UL, VDE	10.5A	UL94V-0	100Mohm	65°C	20°C	PCB Mount	1500V

Documentation

Technical Data Sheet

Drawing

3D Product Image
