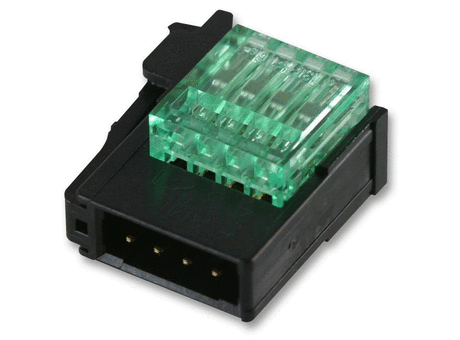

Wire-To-Board Connector, 4 mm, 3 Contacts, Plug, RITS Series, IDC / IDT, 1 Rows

Manufacturer	FARNELL
Description	Wire-To-Board Connector, 4 mm, 3 Contacts, Plug, RITS Series, IDC / IDT, 1 Rows
Part Number	4-1473562-3
Supplier Name	Farnell or Newark
Connector Type	Wire to Board
Contact Material	Copper
Contact Plating	Gold Plated Contacts
Contact Termination	IDC / IDT
Contact Termination Type	IDC / IDT
Current Rating	3A
Gender	Plug
Lead Spacing	4mm
No. of Contacts	3Contacts
No. of Rows	1Rows
Pitch Spacing	4mm
Product Range	RITS Series
Termination Method	Solder

Voltage Rating V AC	32V
Brand Name	TE CONNECTIVITY
Approval Bodies	UL
Colour	Green
Flammability Rating	UL94V-0
Material	PBT / Polycarbonate
Connector Mounting Orientation	PC Board
Withstand Voltage	500V
External Length / Height	8.2mm
External Width	14.1mm
De-mating Force	0.1N
Insulation Diameter Max	1.6mm
Insulation Diameter Min	1.35mm
Length	18.5mm
Mating Force	1.5N
Wire Area Size Max	0.5mm²
Wire Area Size Min	0.3mm²

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Part Number	Description	Connector Type	Contact Material	Contact Plating	Contact Termination	Contact Termination Type	Current Rating	Gender	Lead Spacing	No. of Contacts	No. of Rows	Pitch Spacing	Product Range	Termination Method	Voltage Rating V AC	Brand Name	Supplier Name	Approval Bodies	Colour	Flammability Rating	Material	Connector Mounting Orientation	Withstand Voltage	External Length / Height	External Width	De-mating Force	Insulation Diameter Max	Insulation Diameter Min	Length	Mating Force	Wire Area Size Max	Wire Area Size Min
1	No CAD available	1	4-1473562-3	Wire-To-Board Connector, 4 mm, 3 Contacts, Plug, RITS Series, IDC / IDT, 1 Rows	Wire to Board	Copper	Gold Plated Contacts	IDC / IDT	IDC / IDT	3A	Plug	4mm	3Contacts	1Rows	4mm	RITS Series	Solder	32V	TE CONNECTIVITY	Farnell or Newark	UL	Green	UL94V-0	PBT / Polycarbonate	PC Board	500V	8.2mm	14.1mm	0.1N	1.6mm	1.35mm	18.5mm	1.5N	0.5mm²	0.3mm²

Documentation

Drawing

Technical Data Sheet

3D Product Image
