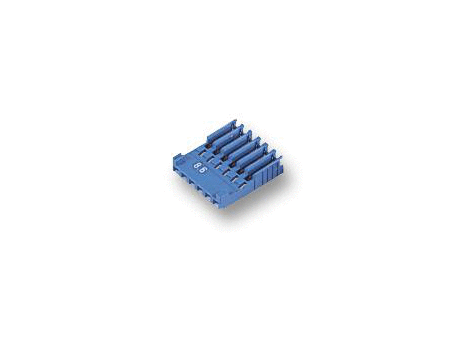

Wire-To-Board Connector, 2.54 mm, 6 Contacts, Receptacle, AMPMODU HE14 Series, IDC / IDT, 1 Rows

Manufacturer	FARNELL
Description	Wire-To-Board Connector, 2.54 mm, 6 Contacts, Receptacle, AMPMODU HE14 Series, IDC / IDT, 1 Rows
Part Number	281786-6
Supplier Name	Farnell or Newark
Contact Plating	Tin Plated Contacts
Contact Resistance	30mohm
Contact Termination	IDC / IDT
Contact Termination Type	IDC / IDT
Current Rating	3A
Flammability Rating	UL94V-0
Gender	Receptacle
No. of Contacts	6Contacts
No. of Mating Cycles	30
Operating Temperature Max	105°C
Operating Temperature Min	-40°C

Product Range	AMPMODU HE14 Series
Working Voltage	500V
Brand Name	AMP - TE CONNECTIVITY
Material	Glass Filled Polyester
Approval Bodies	HE, NFC
Contact Material	Phosphor Bronze
No. of Rows	1Rows
Termination Method	IDC
Colour	Blue
External Length / Height	17.8mm
Pitch Spacing	2.54mm
Insulation Resistance	1000Mohm
Connector Mounting Orientation	Cable
Lead Spacing	2.54mm
External Width	5.1mm

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Plating	Contact Resistance	Contact Termination	Contact Termination Type	Current Rating	Flammability Rating	Gender	No. of Contacts	No. of Mating Cycles	Operating Temperature Max	Operating Temperature Min	Product Range	Working Voltage	Brand Name	Supplier Name	Material	Approval Bodies	Contact Material	No. of Rows	Termination Method	Colour	External Length / Height	Pitch Spacing	Insulation Resistance	Connector Mounting Orientation	Lead Spacing	External Width
1	1	281786-6	Wire-To-Board Connector, 2.54 mm, 6 Contacts, Receptacle, AMPMODU HE14 Series, IDC / IDT, 1 Rows	Tin Plated Contacts	30mohm	IDC / IDT	IDC / IDT	3A	UL94V-0	Receptacle	6Contacts	30	105°C	-40°C	AMPMODU HE14 Series	500V	AMP - TE CONNECTIVITY	Farnell or Newark	Glass Filled Polyester	HE, NFC	Phosphor Bronze	1Rows	IDC	Blue	17.8mm	2.54mm	1000Mohm	Cable	2.54mm	5.1mm

Documentation

Drawing

Technical Data Sheet

3D Product Image
