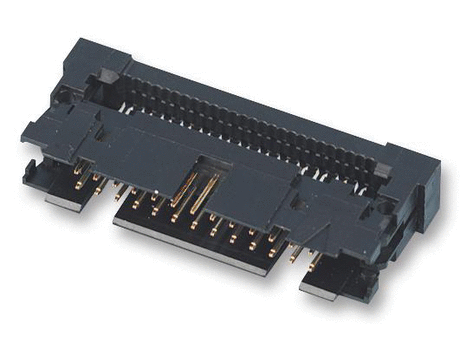

Wire-To-Board Connector, 2.54 mm, 26 Contacts, Plug, AMP-LATCH Universal I/O Series, IDC / IDT

Manufacturer	FARNELL
Description	Wire-To-Board Connector, 2.54 mm, 26 Contacts, Plug, AMP-LATCH Universal I/O Series, IDC / IDT
Part Number	2-111446-0
Supplier Name	Farnell or Newark
Contact Material	Phosphor Bronze
Contact Plating	Gold Plated Contacts
Contact Termination	IDC / IDT
Contact Termination Type	IDC / IDT
Current Rating	1A
Gender	Plug
Housing Type	Black Thermoplastic
Lead Spacing	1.27mm
No. of Contacts	26Contacts
No. of Rows	2Rows

Operating Temperature Max	105°C
Operating Temperature Min	-65°C
Pitch Spacing	1.27mm
Product Range	AMP-LATCH Universal I/O Series
Termination Method	IDC
Brand Name	AMP - TE CONNECTIVITY
Wire Size AWG Max	26AWG
Wire Size AWG Min	28AWG
Approval Bodies	CSA, UL
Connector Mounting Orientation	Cable
Contact Resistance	15mohm
Contact Current Rating	1A
Withstand Voltage	1000V
No. of Mating Cycles	150
