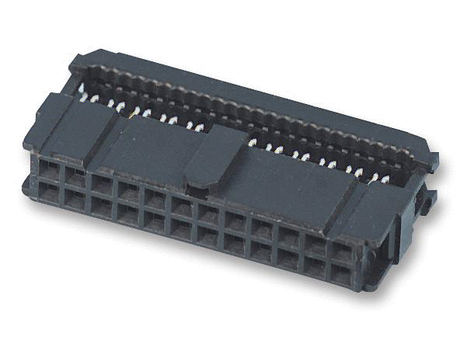

Wire-To-Board Connector, 2.54 mm, 14 Contacts, Receptacle, AMP-LATCH Novo Series, IDC / IDT, 2 Rows

Manufacturer	FARNELL
Description	Wire-To-Board Connector, 2.54 mm, 14 Contacts, Receptacle, AMP-LATCH Novo Series, IDC / IDT, 2 Rows
Part Number	1658621-2
Supplier Name	Farnell or Newark
Connector Mounting Orientation	Cable
Contact Material	Phosphor Bronze
Contact Plating	Gold Plated Contacts
Contact Termination	IDC / IDT
Contact Termination Type	IDC / IDT
Gender	Receptacle
Housing Type	Black Thermoplastic
No. of Contacts	14Contacts
No. of Mating Cycles	75
Termination Method	IDC / IDT

Withstand Voltage	1000V
Brand Name	AMP - TE CONNECTIVITY
Contact Resistance	15mohm
Lead Spacing	2.54mm
Operating Temperature Max	105°C
Operating Temperature Min	-65°C
Pitch Spacing	2.54mm
Product Range	AMP-LATCH Novo Series
Row Pitch	2.54mm
Approval Bodies	CSA, UL
No. of Rows	2Rows
Contact Current Rating	1A
Wire Size	32AWG
IDC Cable Pitch	0.05"

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Connector Mounting Orientation	Contact Material	Contact Plating	Contact Termination	Contact Termination Type	Gender	Housing Type	No. of Contacts	No. of Mating Cycles	Termination Method	Withstand Voltage	Brand Name	Supplier Name	Contact Resistance	Lead Spacing	Operating Temperature Max	Operating Temperature Min	Pitch Spacing	Product Range	Row Pitch	Approval Bodies	No. of Rows	Contact Current Rating	Wire Size	IDC Cable Pitch
1	1	1658621-2	Wire-To-Board Connector, 2.54 mm, 14 Contacts, Receptacle, AMP-LATCH Novo Series, IDC / IDT, 2 Rows	Cable	Phosphor Bronze	Gold Plated Contacts	IDC / IDT	IDC / IDT	Receptacle	Black Thermoplastic	14Contacts	75	IDC / IDT	1000V	AMP - TE CONNECTIVITY	Farnell or Newark	15mohm	2.54mm	105°C	-65°C	2.54mm	AMP-LATCH Novo Series	2.54mm	CSA, UL	2Rows	1A	32AWG	0.05"

Documentation

Technical Data Sheet

Drawing

3D Product Image
