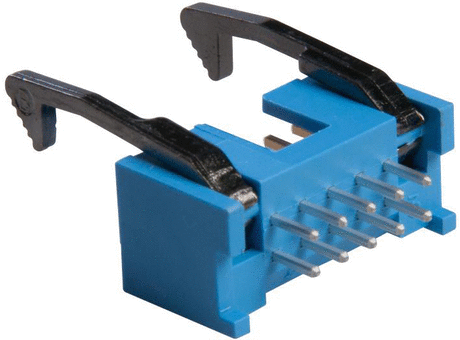

Wire-To-Board Connector, 2.54 mm, 10 Contacts, Header, AMP-LATCH Series, Through Hole, 2 Rows

Manufacturer	FARNELL
Description	Wire-To-Board Connector, 2.54 mm, 10 Contacts, Header, AMP-LATCH Series, Through Hole, 2 Rows
Part Number	2-1761606-3
Supplier Name	Farnell or Newark
Contact Material	Phosphor Bronze
Contact Plating	Gold Plated Contacts
Contact Termination	Through Hole Vertical
Contact Termination Type	Through Hole
Gender	Header
No. of Contacts	10Contacts
No. of Rows	2Rows
Pitch Spacing	2.54mm
Product Range	AMP-LATCH Series
Termination Method	Solder
Brand Name	AMP - TE CONNECTIVITY

Current Rating	1A
Lead Spacing	2.54mm
No. of Mating Cycles	200
Operating Temperature Max	105°C
Operating Temperature Min	-55°C
Withstand Voltage	500V
Flammability Rating	UL94V-0
Insulation Resistance	1Gohm
Material	Glass reinforced thermo plastic
PCB Hole Diameter	0.9mm
Polarisation Type	Bump
External Depth	10.3mm
External Length / Height	9.2mm
External Width	20.3mm

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Contact Plating	Contact Termination	Contact Termination Type	Gender	No. of Contacts	No. of Rows	Pitch Spacing	Product Range	Termination Method	Brand Name	Supplier Name	Current Rating	Lead Spacing	No. of Mating Cycles	Operating Temperature Max	Operating Temperature Min	Withstand Voltage	Flammability Rating	Insulation Resistance	Material	PCB Hole Diameter	Polarisation Type	External Depth	External Length / Height	External Width
1	1	2-1761606-3	Wire-To-Board Connector, 2.54 mm, 10 Contacts, Header, AMP-LATCH Series, Through Hole, 2 Rows	Phosphor Bronze	Gold Plated Contacts	Through Hole Vertical	Through Hole	Header	10Contacts	2Rows	2.54mm	AMP-LATCH Series	Solder	AMP - TE CONNECTIVITY	Farnell or Newark	1A	2.54mm	200	105°C	-55°C	500V	UL94V-0	1Gohm	Glass reinforced thermo plastic	0.9mm	Bump	10.3mm	9.2mm	20.3mm
