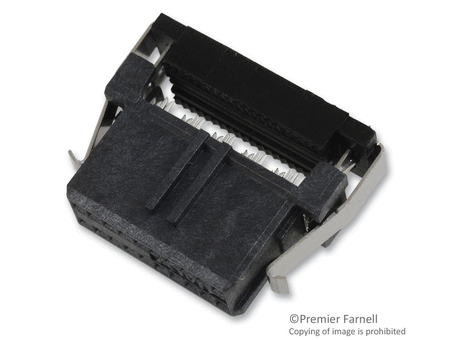

Wire-To-Board Connector, 1.27 mm, 20 Contacts, Receptacle, AMPMODU System 50 Series, IDC / IDT

Manufacturer	FARNELL
Description	Wire-To-Board Connector, 1.27 mm, 20 Contacts, Receptacle, AMPMODU System 50 Series, IDC / IDT
Part Number	1-111196-8
Supplier Name	Farnell or Newark
Gender	Receptacle
No. of Contacts	20Contacts
No. of Rows	2Rows
Pitch Spacing	1.27mm
Product Range	AMPMODU System 50 Series
Brand Name	AMP - TE CONNECTIVITY
Contact Material	Copper Alloy
Contact Plating	Gold Plated Contacts
Contact Termination	IDC / IDT
Contact Termination Type	IDC / IDT

Colour	Black
Termination Method	IDC
Material	Thermoplastic
Voltage Rating V AC	30V
Connector Mounting Orientation	Cable
Contact Current Rating	5A
External Depth	6.25mm
External Length / Height	14.73mm
Flammability Rating	UL 94V-0
Insulation Resistance	5000Mohm
Operating Temperature Max	105°C
Operating Temperature Min	-65°C
Terminal Plating	Tin
