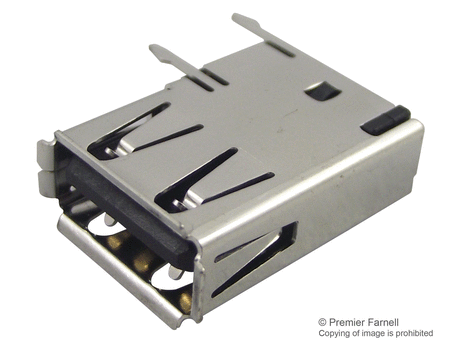

USB Connector, USB Type A, USB 2.0, Receptacle, 4 Positions, Through Hole Mount, Right Angle

Manufacturer	FARNELL
Description	USB Connector, USB Type A, USB 2.0, Receptacle, 4 Positions, Through Hole Mount, Right Angle
Part Number	292336-1
Supplier Name	Farnell or Newark
Connector Type	USB
Contact Material	Phosphor Bronze
Contact Plating	Gold Plated Contacts
Termination Method	Solder
Brand Name	TE CONNECTIVITY / AMP
Connector Mounting	Through Hole Mount
Contact Termination	Solder
Contact Termination Type	Solder
Gender	Receptacle
No. of Contacts	4Contacts

No. of Positions	4Ways
Orientation	Right Angle
USB Connector Type	USB Type A
USB Standard	USB 2.0
Connector Mounting Orientation	Through Hole with Board Guide
External Length / Height	13.83mm
External Width	5.12mm
Flammability Rating	UL94V-0
Mounting Type	PCB Through Hole
No. of Ways	4
Body Plating	Gold
Length	19.29mm
Housing Type	Black Thermoplastic
