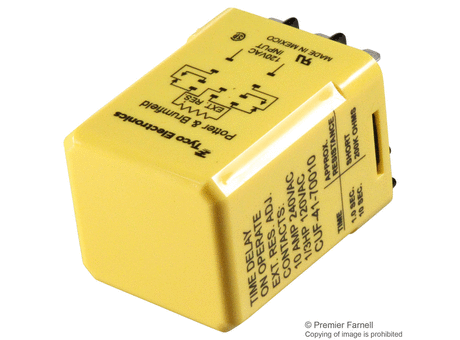

Time Delay Relay, 30 VDC, 1 s, 10 s, CU Series, DPDT, 10 A

Manufacturer	FARNELL
Description	Time Delay Relay, 30 VDC, 1 s, 10 s, CU Series, DPDT, 10 A
Part Number	CUF-41-70010
Supplier Name	Farnell or Newark
Product Range	CU Series
Brand Name	POTTER&BRUMFIELD - TE CONNECTIVITY
Contact Configuration	DPDT
Contact Current	10A
Contact Voltage VAC	277VAC
Contact Voltage VDC	30VDC

Relay Mounting	Socket
Relay Terminals	Quick Connect
Contact Carrying Power	3VA
Delay Time Range	1s to 10s
Nom Input Voltage	120VAC
Supply Voltage	120VAC
Time Max	10s
Time Min	1s
Timer Functions	Delay-On-Make
Timing Adjustment	Resistor

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Product Range	Brand Name	Supplier Name	Contact Configuration	Contact Current	Contact Voltage VAC	Contact Voltage VDC	Relay Mounting	Relay Terminals	Contact Carrying Power	Delay Time Range	Nom Input Voltage	Supply Voltage	Time Max	Time Min	Timer Functions	Timing Adjustment
1	1	CUF-41-70010	Time Delay Relay, 30 VDC, 1 s, 10 s, CU Series, DPDT, 10 A	CU Series	POTTER&BRUMFIELD - TE CONNECTIVITY	Farnell or Newark	DPDT	10A	277VAC	30VDC	Socket	Quick Connect	3VA	1s to 10s	120VAC	120VAC	10s	1s	Delay-On-Make	Resistor
