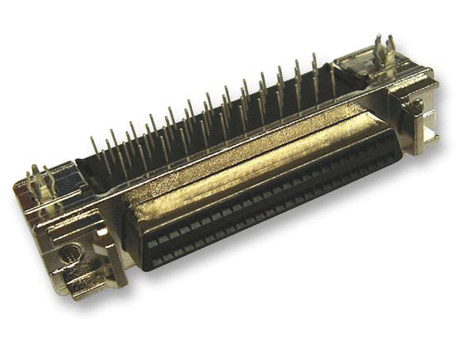

Standard D Sub Connector, 50 Contacts, Receptacle, DD, AMPLIMITE 0.050 Series, Steel Body, Solder

Manufacturer	FARNELL
Description	Standard D Sub Connector, 50 Contacts, Receptacle, DD, AMPLIMITE 0.050 Series, Steel Body, Solder
Part Number	1761028-3
Supplier Name	Farnell or Newark
Contact Material	Phosphor Bronze
Product Range	AMPLIMITE 0.050 Series
Brand Name	AMP - TE CONNECTIVITY
Mounting Type	PCB Through Hole
Contact Plating	Gold Plated Contacts
Contact Termination	Solder
Contact Termination Type	Solder
Gender	Receptacle

Connector Type	SCSI
Connector Body Material	Steel Body
D Sub Shell Size	DD
Flammability Rating	UL94V-0
Material	Thermoplastic
No. of Contacts	50Contacts
Termination Method	Solder
No. of Ways	50
Connector Mounting	PCB Mount
Connector Mounting Orientation	PC Board
Terminal Plating	Tin

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Product Range	Brand Name	Supplier Name	Mounting Type	Contact Plating	Contact Termination	Contact Termination Type	Gender	Connector Type	Connector Body Material	D Sub Shell Size	Flammability Rating	Material	No. of Contacts	Termination Method	No. of Ways	Connector Mounting	Connector Mounting Orientation	Terminal Plating
1	1	1761028-3	Standard D Sub Connector, 50 Contacts, Receptacle, DD, AMPLIMITE 0.050 Series, Steel Body, Solder	Phosphor Bronze	AMPLIMITE 0.050 Series	AMP - TE CONNECTIVITY	Farnell or Newark	PCB Through Hole	Gold Plated Contacts	Solder	Solder	Receptacle	SCSI	Steel Body	DD	UL94V-0	Thermoplastic	50Contacts	Solder	50	PCB Mount	PC Board	Tin

Documentation

Technical Data Sheet

Drawing

3D Product Image
