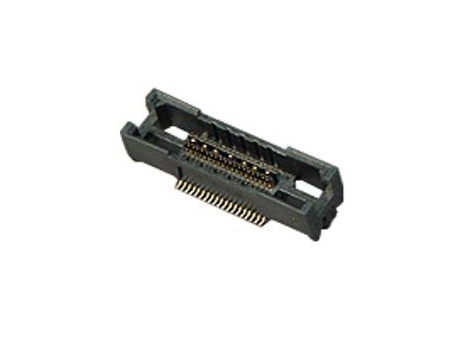

Stacking Board Connector, MICTOR Series, 38 Contacts, Receptacle, 0.64 mm, Surface Mount, 1 Rows

Manufacturer	FARNELL
Description	Stacking Board Connector, MICTOR Series, 38 Contacts, Receptacle, 0.64 mm, Surface Mount, 1 Rows
Part Number	5767054-1
Supplier Name	Farnell or Newark
Connector Mounting Orientation	Through Hole
Contact Material	Copper Alloy
Contact Plating	Gold Plated Contacts
Contact Termination	Solder
Contact Termination Type	Surface Mount
Gender	Receptacle
No. of Contacts	38Contacts

No. of Rows	1Rows
Pitch Spacing	0.64mm
Product Range	MICTOR Series
Brand Name	AMP - TE CONNECTIVITY
Lead Spacing	0.64mm
External Depth	8.72mm
External Length / Height	5.99mm
External Width	25.4mm
Connector Type	Stacking
Insulator Material	Thermoplastic
Row Pitch	7.06mm

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Connector Mounting Orientation	Contact Material	Contact Plating	Contact Termination	Contact Termination Type	Gender	No. of Contacts	No. of Rows	Pitch Spacing	Product Range	Brand Name	Supplier Name	Lead Spacing	External Depth	External Length / Height	External Width	Connector Type	Insulator Material	Row Pitch
1	1	5767054-1	Stacking Board Connector, MICTOR Series, 38 Contacts, Receptacle, 0.64 mm, Surface Mount, 1 Rows	Through Hole	Copper Alloy	Gold Plated Contacts	Solder	Surface Mount	Receptacle	38Contacts	1Rows	0.64mm	MICTOR Series	AMP - TE CONNECTIVITY	Farnell or Newark	0.64mm	8.72mm	5.99mm	25.4mm	Stacking	Thermoplastic	7.06mm

Documentation

Drawing

3D Product Image

Technical Data Sheet
