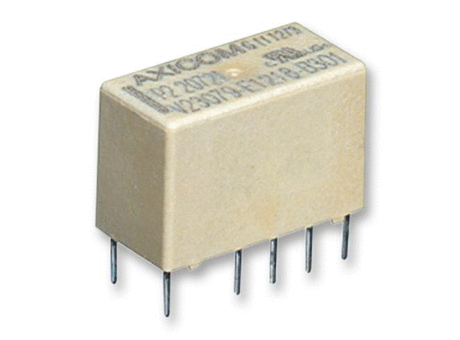

Signal Relay, DPDT, 5 VDC, 2 A, P2/V23079 Series, Through Hole, Latching Single Coil

Manufacturer	FARNELL
Description	Signal Relay, DPDT, 5 VDC, 2 A, P2/V23079 Series, Through Hole, Latching Single Coil
Part Number	V23079C1101B301
Supplier Name	Farnell or Newark
Contact Material	Silver Nickel
Brand Name	AXICOM - TE CONNECTIVITY
Product Range	P2/V23079 Series
Contact Current	2A
Approvals & Standards	IEC, UL
Coil Resistance	357ohm
Coil Type	Latching Single Coil
Coil Voltage	5VDC
Coil Voltage VDC Nom	5V
Contact Configuration	DPDT
Contact Current AC Max	2A
Contact Current Max	2A
Contact Voltage AC Max	250V
Contact Voltage AC Nom	250V
Contact Voltage VAC	250V
External Depth	14.5mm
External Height	9.8mm
External Width	7.2mm
Relay Mounting	Through Hole

Relay Terminals	Solder
Relay Type	General Purpose
Coil Power Continuous	70mW
Contact Voltage DC Nom	220V
Contact Voltage VDC	220V
No. of Poles	2
Contact Current DC Max	2A
Contact Voltage DC Max	220V
DC Coil Power	70mW
External Length / Height	14.5mm
Mounting Type	PCB
Operating Temperature Max	85°C
Operating Temperature Min	-40°C
Operating Time	3ms
Release Time	2ms
IP / NEMA Rating	IP67
Contact Current Rating	5A
Switch Current Max	5A
Switching Current Max	5A
Switching Power Max	60W
Switching Voltage AC / DC Max	220VDC
Switching Voltage AC / DC Min	250VAC
Operating Voltage Range	3.75V to 15.33V
