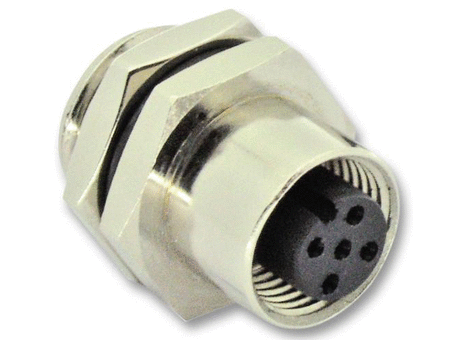

Sensor Connector, M12 Connector Type Sensors, M8/M12 Connector System

Manufacturer	FARNELL
Description	Sensor Connector, M12 Connector Type Sensors, M8/M12 Connector System
Part Number	1838891-2
Supplier Name	Farnell or Newark
Contact Material	Brass
Contact Plating	Gold Plated Contacts
Contact Termination	Solder
Gender	Plug
Material	GF Nylon
No. of Contacts	4Contacts
Product Range	M8/M12 Connector System
Brand Name	TE CONNECTIVITY

External Length / Height	25.2mm
Connector Mounting	Panel Mount
Operating Temperature Max	90°C
Operating Temperature Min	-25°C
Contact Gender	Socket
For Use With	M12 Connector Type Sensors
Current Rating	5A
No. of Ways	4
Accessory Type	Sensor Lead
Connector Type A	M12 Socket
External Diameter	13.4mm

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Contact Plating	Contact Termination	Gender	Material	No. of Contacts	Product Range	Brand Name	Supplier Name	External Length / Height	Connector Mounting	Operating Temperature Max	Operating Temperature Min	Contact Gender	For Use With	Current Rating	No. of Ways	Accessory Type	Connector Type A	External Diameter
1	1	1838891-2	Sensor Connector, M12 Connector Type Sensors, M8/M12 Connector System	Brass	Gold Plated Contacts	Solder	Plug	GF Nylon	4Contacts	M8/M12 Connector System	TE CONNECTIVITY	Farnell or Newark	25.2mm	Panel Mount	90°C	-25°C	Socket	M12 Connector Type Sensors	5A	4	Sensor Lead	M12 Socket	13.4mm

Documentation

Drawing

3D Product Image
