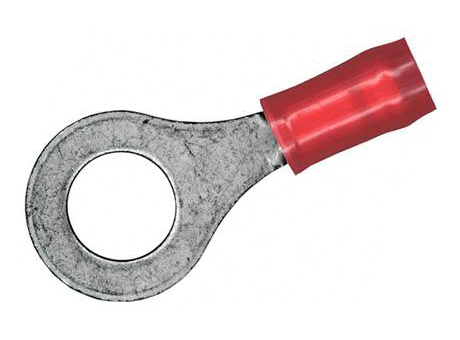

Ring Tongue Terminal, M6, 1/4", PIDG Series, 16 AWG, 1.42 mm-¦, Nylon (Polyamide)

Manufacturer	FARNELL
Description	Ring Tongue Terminal, M6, 1/4", PIDG Series, 16 AWG, 1.42 mm-¦, Nylon (Polyamide)
Part Number	2-31894-2
Supplier Name	Farnell or Newark
Connector Type	Ring Tongue
Product Range	PIDG Series
Brand Name	AMP - TE CONNECTIVITY
Contact Material	Copper
Contact Plating	Tin Plated Contacts

Wire Size AWG Max	16AWG
Wire Size AWG Min	22AWG
Termination Method	Crimp
Insulator Material	Nylon (Polyamide)
Conductor Area CSA	1.42mm²
Insulator Colour	Red
Stud/Tab Size	0.25"
Stud Size - Imperial	1/4"
Stud Size - Metric	6.35mm

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Connector Type	Product Range	Brand Name	Supplier Name	Contact Material	Contact Plating	Wire Size AWG Max	Wire Size AWG Min	Termination Method	Insulator Material	Conductor Area CSA	Insulator Colour	Stud/Tab Size	Stud Size - Imperial	Stud Size - Metric
1	1	2-31894-2	Ring Tongue Terminal, M6, 1/4", PIDG Series, 16 AWG, 1.42 mm-¦, Nylon (Polyamide)	Ring Tongue	PIDG Series	AMP - TE CONNECTIVITY	Farnell or Newark	Copper	Tin Plated Contacts	16AWG	22AWG	Crimp	Nylon (Polyamide)	1.42mm²	Red	0.25"	1/4"	6.35mm

Documentation

Drawing
