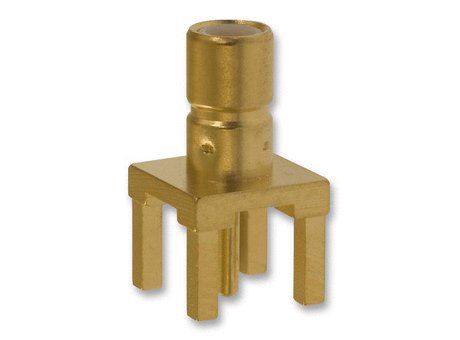

RF / Coaxial Connector, SMB Coaxial, Straight Jack, Through Hole Vertical, 50 ohm, Brass

Manufacturer	FARNELL
Description	RF / Coaxial Connector, SMB Coaxial, Straight Jack, Through Hole Vertical, 50 ohm, Brass
Part Number	413990-2
Supplier Name	Farnell or Newark
Connector Type	SMB Coaxial
Contact Material	Brass
Contact Plating	Gold Plated Contacts
Brand Name	TE CONNECTIVITY / AMP

Connector Mounting	PCB Mount
Connector Mounting Orientation	PC Board
Coaxial Termination	Through Hole Vertical
Connector Body Style	Straight Jack
Frequency Max	4GHz
Impedance	50ohm
Body Style	Straight Jack

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Connector Type	Contact Material	Contact Plating	Brand Name	Supplier Name	Connector Mounting	Connector Mounting Orientation	Coaxial Termination	Connector Body Style	Frequency Max	Impedance	Body Style
1	1	413990-2	RF / Coaxial Connector, SMB Coaxial, Straight Jack, Through Hole Vertical, 50 ohm, Brass	SMB Coaxial	Brass	Gold Plated Contacts	TE CONNECTIVITY / AMP	Farnell or Newark	PCB Mount	PC Board	Through Hole Vertical	Straight Jack	4GHz	50ohm	Straight Jack

Documentation

Drawing

3D Product Image

Technical Data Sheet
