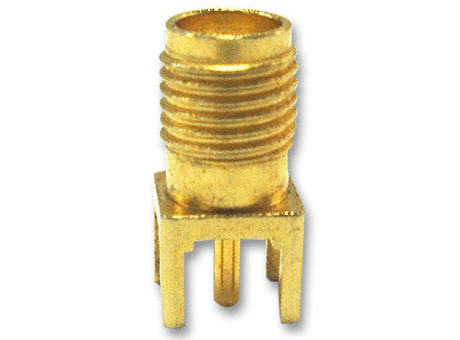

RF / Coaxial Connector, SMA Coaxial, Straight Jack, Solder, 50 ohm, Beryllium Copper

Manufacturer	FARNELL
Description	RF / Coaxial Connector, SMA Coaxial, Straight Jack, Solder, 50 ohm, Beryllium Copper
Part Number	5-1814832-1
Supplier Name	Farnell or Newark
Contact Material	Beryllium Copper
Product Range	ZDC Series
Brand Name	TE CONNECTIVITY
Mounting Type	PCB Through Hole
Insulation Resistance	5000Mohm
Contact Plating	Gold Plated Contacts
Connector Type	SMA Coaxial
Termination Method	Solder
Body Style	Straight Jack

Coaxial Termination	Solder
Connector Body Style	Straight Jack
Connector Mounting	PCB Mount
Connector Mounting Orientation	PC Board
Frequency Max	3GHz
Impedance	50ohm
No. of Mating Cycles	50
Withstand Voltage	500V
Centre Contact Resistance	3mohm
Coaxial Type	50
Operating Frequency Max	3GHz
Outer Contact Resistance	2mohm
Plug Body Material	Zinc Alloy

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Product Range	Brand Name	Supplier Name	Mounting Type	Insulation Resistance	Contact Plating	Connector Type	Termination Method	Body Style	Coaxial Termination	Connector Body Style	Connector Mounting	Connector Mounting Orientation	Frequency Max	Impedance	No. of Mating Cycles	Withstand Voltage	Centre Contact Resistance	Coaxial Type	Operating Frequency Max	Outer Contact Resistance	Plug Body Material
1	1	5-1814832-1	RF / Coaxial Connector, SMA Coaxial, Straight Jack, Solder, 50 ohm, Beryllium Copper	Beryllium Copper	ZDC Series	TE CONNECTIVITY	Farnell or Newark	PCB Through Hole	5000Mohm	Gold Plated Contacts	SMA Coaxial	Solder	Straight Jack	Solder	Straight Jack	PCB Mount	PC Board	3GHz	50ohm	50	500V	3mohm	50	3GHz	2mohm	Zinc Alloy
