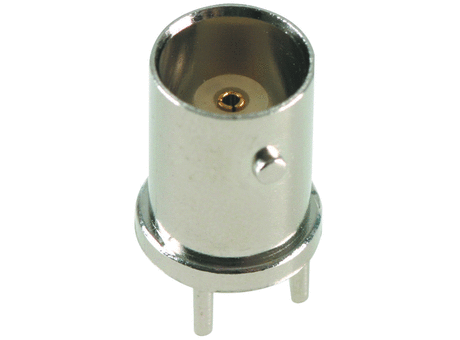

RF / Coaxial Connector, BNC Coaxial, Straight Jack, Solder, 50 ohm, Phosphor Bronze

Manufacturer	FARNELL
Description	RF / Coaxial Connector, BNC Coaxial, Straight Jack, Solder, 50 ohm, Phosphor Bronze
Part Number	5-1634503-1
Supplier Name	Farnell or Newark
Operating Temperature Max	+85°C
Operating Temperature Min	-55°C
Brand Name	AMP - TE CONNECTIVITY
Contact Material	Brass
Contact Plating	Gold Plated Contacts
Contact Resistance	1.5mohm
Insulation Resistance	5000Mohm
Termination Method	Solder
Working Voltage	500V
Body Plating	Nickel

Connector Type	BNC Coaxial
Connector Mounting	PCB Mount
Connector Mounting Orientation	PC Board
Withstand Voltage	1500V
No. of Mating Cycles	50
Body Style	Straight Jack
Coaxial Termination	Solder
Connector Body Style	Straight Jack
Frequency Max	2GHz
Impedance	50ohm
Mounting Type	PCB Through Hole
Operating Frequency Max	2GHz
Plug Body Material	Zinc
Coaxial Type	50R

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Operating Temperature Max	Operating Temperature Min	Brand Name	Supplier Name	Contact Material	Contact Plating	Contact Resistance	Insulation Resistance	Termination Method	Working Voltage	Body Plating	Connector Type	Connector Mounting	Connector Mounting Orientation	Withstand Voltage	No. of Mating Cycles	Body Style	Coaxial Termination	Connector Body Style	Frequency Max	Impedance	Mounting Type	Operating Frequency Max	Plug Body Material	Coaxial Type
1	1	5-1634503-1	RF / Coaxial Connector, BNC Coaxial, Straight Jack, Solder, 50 ohm, Phosphor Bronze	+85°C	-55°C	AMP - TE CONNECTIVITY	Farnell or Newark	Brass	Gold Plated Contacts	1.5mohm	5000Mohm	Solder	500V	Nickel	BNC Coaxial	PCB Mount	PC Board	1500V	50	Straight Jack	Solder	Straight Jack	2GHz	50ohm	PCB Through Hole	2GHz	Zinc	50R

Documentation

3D Product Image

Drawing

Technical Data Sheet

Contact the supplier
