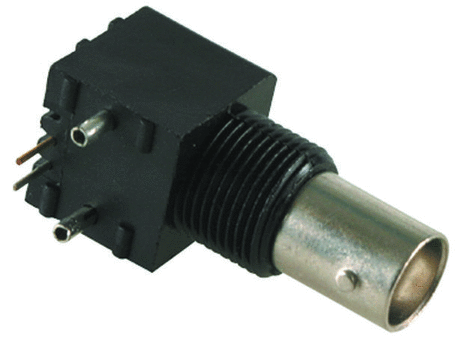

RF / Coaxial Connector, BNC Coaxial, Right Angle Jack, Solder, 50 ohm, Phosphor Bronze

Manufacturer	FARNELL
Description	RF / Coaxial Connector, BNC Coaxial, Right Angle Jack, Solder, 50 ohm, Phosphor Bronze
Part Number	1-1634612-0
Supplier Name	Farnell or Newark
Operating Temperature Max	+85°C
Operating Temperature Min	-55°C
Brand Name	GREENPAR - TE CONNECTIVITY
Contact Material	Brass
Contact Plating	Gold Plated Contacts
Contact Resistance	1.5mohm
Insulation Resistance	5000Mohm
Termination Method	Solder

Working Voltage	500V
Body Plating	Nickel
Connector Type	BNC Coaxial
Connector Mounting	PCB Mount
Withstand Voltage	1500V
No. of Mating Cycles	50
Body Style	Right Angle Jack
Coaxial Termination	Solder
Connector Body Style	Right Angle Jack
Frequency Max	4GHz
Impedance	50ohm

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Operating Temperature Max	Operating Temperature Min	Brand Name	Supplier Name	Contact Material	Contact Plating	Contact Resistance	Insulation Resistance	Termination Method	Working Voltage	Body Plating	Connector Type	Connector Mounting	Withstand Voltage	No. of Mating Cycles	Body Style	Coaxial Termination	Connector Body Style	Frequency Max	Impedance
1	1	1-1634612-0	RF / Coaxial Connector, BNC Coaxial, Right Angle Jack, Solder, 50 ohm, Phosphor Bronze	+85°C	-55°C	GREENPAR - TE CONNECTIVITY	Farnell or Newark	Brass	Gold Plated Contacts	1.5mohm	5000Mohm	Solder	500V	Nickel	BNC Coaxial	PCB Mount	1500V	50	Right Angle Jack	Solder	Right Angle Jack	4GHz	50ohm
