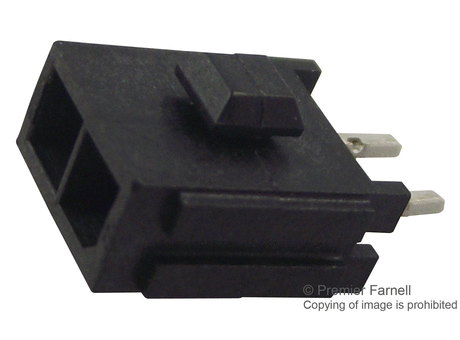

Rectangular Connector, Micro MATE-N-LOK Series, 2 Contacts, Header, 3 mm, Through Hole, 2 Row

Manufacturer	FARNELL
Description	Rectangular Connector, Micro MATE-N-LOK Series, 2 Contacts, Header, 3 mm, Through Hole, 2 Row
Part Number	3-794630-2
Supplier Name	Farnell or Newark
Contact Material	Brass
Contact Plating	Tin Plated Contacts
Contact Termination	Through Hole Vertical
Contact Termination Type	Through Hole
Current Rating	5A
Gender	Header
No. of Contacts	2Contacts
No. of Rows	2Rows

Pitch Spacing	3mm
Product Range	Micro MATE-N-LOK Series
Termination Method	Solder
Working Voltage	250V
Brand Name	TE CONNECTIVITY / AMP
Approval Bodies	CSA, UL
Colour	Black
Flammability Rating	UL94V-0
Material	Nylon
Operating Temperature Max	105°C
Operating Temperature Min	-40°C
Connector Mounting	PCB Mount

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Part Number	Description	Contact Material	Contact Plating	Contact Termination	Contact Termination Type	Current Rating	Gender	No. of Contacts	No. of Rows	Pitch Spacing	Product Range	Termination Method	Working Voltage	Brand Name	Supplier Name	Approval Bodies	Colour	Flammability Rating	Material	Operating Temperature Max	Operating Temperature Min	Connector Mounting
1	No CAD available	1	3-794630-2	Rectangular Connector, Micro MATE-N-LOK Series, 2 Contacts, Header, 3 mm, Through Hole, 2 Row	Brass	Tin Plated Contacts	Through Hole Vertical	Through Hole	5A	Header	2Contacts	2Rows	3mm	Micro MATE-N-LOK Series	Solder	250V	TE CONNECTIVITY / AMP	Farnell or Newark	CSA, UL	Black	UL94V-0	Nylon	105°C	-40°C	PCB Mount

Documentation

3D Product Image

Drawing

Technical Data Sheet
