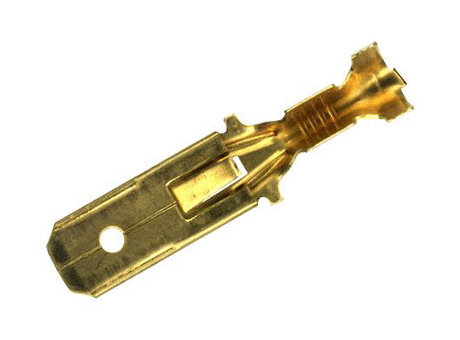

Quick Disconnect Terminal, FASTON 250 Series, 18 AWG, 14 AWG, 2 mmÂ², Male Quick Disconnect

Manufacturer	FARNELL
Description	Quick Disconnect Terminal, FASTON 250 Series, 18 AWG, 14 AWG, 2 mmÂ², Male Quick Disconnect
Part Number	42460-1
Supplier Name	Farnell or Newark
Connector Type	Male Disconnect
Contact Material	Brass
Brand Name	AMP - TE CONNECTIVITY
Product Range	FASTON 250 Series
Wire Size AWG Max	14AWG

Conductor Area CSA	2mm²
Insulator Material	Uninsulated
Tab Size - Imperial	0.25" x 0.032"
Tab Size - Metric	6.35mm x 0.81mm
Terminal Material	Brass
Terminal Type	Male Quick Disconnect
Wire Size AWG Min	18AWG
Termination Method	Crimp
Stud/Tab Size	0.25" x 0.032"

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Connector Type	Contact Material	Brand Name	Supplier Name	Product Range	Wire Size AWG Max	Conductor Area CSA	Insulator Material	Tab Size - Imperial	Tab Size - Metric	Terminal Material	Terminal Type	Wire Size AWG Min	Termination Method	Stud/Tab Size
1	1	42460-1	Quick Disconnect Terminal, FASTON 250 Series, 18 AWG, 14 AWG, 2 mmÂ², Male Quick Disconnect	Male Disconnect	Brass	AMP - TE CONNECTIVITY	Farnell or Newark	FASTON 250 Series	14AWG	2mm²	Uninsulated	0.25" x 0.032"	6.35mm x 0.81mm	Brass	Male Quick Disconnect	18AWG	Crimp	0.25" x 0.032"

Documentation

Drawing
