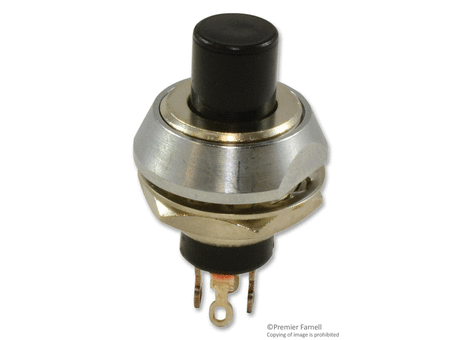

Pushbutton Switch, (On)-(Off), DPST, 125 V, 500 mA, Solder

Manufacturer	FARNELL
Description	Pushbutton Switch, (On)-(Off), DPST, 125 V, 500 mA, Solder
Part Number	MSPF101BC0
Supplier Name	Farnell or Newark
Product Range	MSPF Series
Brand Name	ALCOSWITCH - TE CONNECTIVITY
Actuator / Cap Colour	Black
Actuator Diameter	0.27"

Contact Configuration	DPST
Contact Current AC Max	500mA
Contact Current Max	500mA
Contact Voltage AC Max	125V
Contact Voltage AC Nom	125V
Illumination	Illuminated
Switch Operation	(On)-(Off)
Switch Terminals	Solder

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Product Range	Brand Name	Supplier Name	Actuator / Cap Colour	Actuator Diameter	Contact Configuration	Contact Current AC Max	Contact Current Max	Contact Voltage AC Max	Contact Voltage AC Nom	Illumination	Switch Operation	Switch Terminals
1	1	MSPF101BC0	Pushbutton Switch, (On)-(Off), DPST, 125 V, 500 mA, Solder	MSPF Series	ALCOSWITCH - TE CONNECTIVITY	Farnell or Newark	Black	0.27"	DPST	500mA	500mA	125V	125V	Illuminated	(On)-(Off)	Solder

Documentation

Drawing
