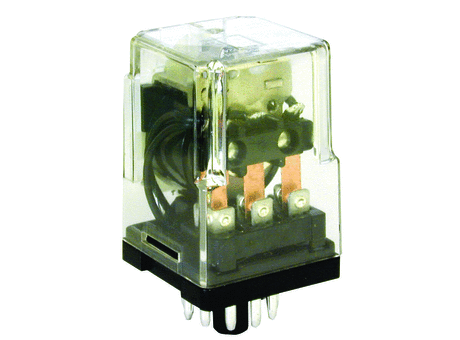

Power Relay, DPDT, 6 VDC, 10 A, KRPA Series, Socket, Non Latching

Manufacturer	FARNELL
Description	Power Relay, DPDT, 6 VDC, 10 A, KRPA Series, Socket, Non Latching
Part Number	KRPA-11DG-6
Supplier Name	Farnell or Newark
Contact Material	Silver Cadmium Oxide
Product Range	KRPA Series
Brand Name	POTTER&BRUMFIELD - TE CONNECTIVITY
Contact Current	10A
External Depth	35.71mm
External Width	35.71mm
Width	35.71mm
External Height	50.8mm
Height	50.8mm
Carry Current	10A
Coil Current	188mA
Coil Resistance	32ohm
Coil Type	Non Latching

Coil Voltage	6VDC
Coil Voltage VDC Nom	6V
Contact Carrying Power	1.2W
Contact Configuration	DPDT
Contact Current AC Max	10A
Contact Current Max	10A
Contact Voltage AC Max	120V
Contact Voltage AC Nom	240V
Contact Voltage VAC	240VAC
Depth	35.71mm
Nom Operating Power	1.15W
Relay Mounting	Socket
Relay Terminals	Quick Connect
Relay Type	Power - General Purpose
Approvals & Standards	CSA, UL
Contact Current DC Max	10A
Contact Voltage DC Max	28V

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Product Range	Brand Name	Supplier Name	Contact Current	External Depth	External Width	Width	External Height	Height	Carry Current	Coil Current	Coil Resistance	Coil Type	Coil Voltage	Coil Voltage VDC Nom	Contact Carrying Power	Contact Configuration	Contact Current AC Max	Contact Current Max	Contact Voltage AC Max	Contact Voltage AC Nom	Contact Voltage VAC	Depth	Nom Operating Power	Relay Mounting	Relay Terminals	Relay Type	Approvals & Standards	Contact Current DC Max	Contact Voltage DC Max
1	1	KRPA-11DG-6	Power Relay, DPDT, 6 VDC, 10 A, KRPA Series, Socket, Non Latching	Silver Cadmium Oxide	KRPA Series	POTTER&BRUMFIELD - TE CONNECTIVITY	Farnell or Newark	10A	35.71mm	35.71mm	35.71mm	50.8mm	50.8mm	10A	188mA	32ohm	Non Latching	6VDC	6V	1.2W	DPDT	10A	10A	120V	240V	240VAC	35.71mm	1.15W	Socket	Quick Connect	Power - General Purpose	CSA, UL	10A	28V
