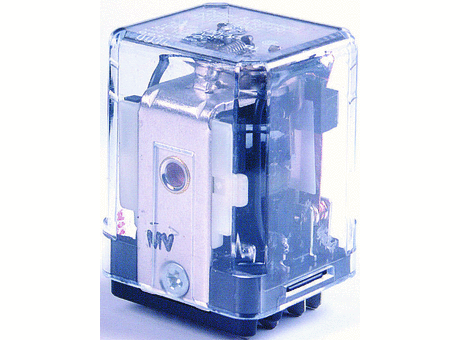

Power Relay, DPDT, 125 VDC, 10 A, KUEP Series, Socket, Non Latching

Manufacturer	FARNELL
Description	Power Relay, DPDT, 125 VDC, 10 A, KUEP Series, Socket, Non Latching
Part Number	KUEP-11D15-125
Supplier Name	Farnell or Newark
Contact Material	Silver Cadmium Oxide
Product Range	KUEP Series
Brand Name	POTTER&BRUMFIELD - TE CONNECTIVITY
Contact Current	10A
Coil Resistance	8.68kohm

Coil Voltage	125VDC
Contact Configuration	DPDT
Contact Voltage VAC	240VAC
Contact Voltage VDC	32VDC
Relay Mounting	Socket
Relay Terminals	Quick Connect
Relay Type	Power - General Purpose
Coil Type	Non Latching
Approvals & Standards	CE, CSA, UL

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Product Range	Brand Name	Supplier Name	Contact Current	Coil Resistance	Coil Voltage	Contact Configuration	Contact Voltage VAC	Contact Voltage VDC	Relay Mounting	Relay Terminals	Relay Type	Coil Type	Approvals & Standards
1	1	KUEP-11D15-125	Power Relay, DPDT, 125 VDC, 10 A, KUEP Series, Socket, Non Latching	Silver Cadmium Oxide	KUEP Series	POTTER&BRUMFIELD - TE CONNECTIVITY	Farnell or Newark	10A	8.68kohm	125VDC	DPDT	240VAC	32VDC	Socket	Quick Connect	Power - General Purpose	Non Latching	CE, CSA, UL

Documentation

Technical Data Sheet
