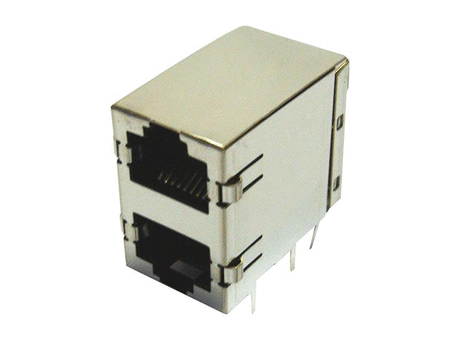

Modular Connector, RJ45, MRJ21 Series, Jack, 8 Contacts, 8 Positions, 2 Ports

Manufacturer	FARNELL
Description	Modular Connector, RJ45, MRJ21 Series, Jack, 8 Contacts, 8 Positions, 2 Ports
Part Number	5569381-1
Supplier Name	Farnell or Newark
Contact Material	Phosphor Bronze
Current Rating	1.5A
External Depth	28.45mm
External Length / Height	25.27mm
External Width	17.27mm
Product Range	MRJ21 Series
Brand Name	TE CONNECTIVITY / AMP
Colour	Black
Connector Type	RJ45
Contact Plating	Gold Plated Contacts

Contact Termination	Through Hole Right Angle
Contact Termination Type	Through Hole
Gender	Jack
No. of Contacts	8Contacts
No. of Positions	8Ways
LAN Category	Cat5
No. of Ports	2Ports
Material	Polyester
Voltage Rating V AC	150V
No. of Ways	2 x 8
Flammability Rating	UL 94V-0
Body Plating	Tin
No. of Mating Cycles	750

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Current Rating	External Depth	External Length / Height	External Width	Product Range	Brand Name	Supplier Name	Colour	Connector Type	Contact Plating	Contact Termination	Contact Termination Type	Gender	No. of Contacts	No. of Positions	LAN Category	No. of Ports	Material	Voltage Rating V AC	No. of Ways	Flammability Rating	Body Plating	No. of Mating Cycles
1	1	5569381-1	Modular Connector, RJ45, MRJ21 Series, Jack, 8 Contacts, 8 Positions, 2 Ports	Phosphor Bronze	1.5A	28.45mm	25.27mm	17.27mm	MRJ21 Series	TE CONNECTIVITY / AMP	Farnell or Newark	Black	RJ45	Gold Plated Contacts	Through Hole Right Angle	Through Hole	Jack	8Contacts	8Ways	Cat5	2Ports	Polyester	150V	2 x 8	UL 94V-0	Tin	750
