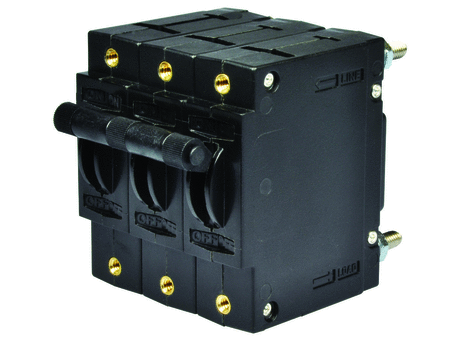

Magnetic Hydraulic Circuit Breaker, W9 Series, 30 A, 3 Pole, 277 V, 20 s, 5 kA

Manufacturer	FARNELL
Description	Magnetic Hydraulic Circuit Breaker, W9 Series, 30 A, 3 Pole, 277 V, 20 s, 5 kA
Part Number	W93-X112-30
Supplier Name	Farnell or Newark
Product Range	W9 Series
Brand Name	TE CONNECTIVITY / POTTER & BRUMFIELD
Current Rating	30A
Voltage AC	277V
Operating Voltage	277V

No. of Poles	3 Pole
Circuit Breaker Mounting	Panel
Dielectric Strength	1.5kV
Input Voltage VAC	277V
Interrupting Capacity	5kA
Trip Time	20s
Voltage Rating VAC	277V
Voltage Rating VDC	65V

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Product Range	Brand Name	Supplier Name	Current Rating	Voltage AC	Operating Voltage	No. of Poles	Circuit Breaker Mounting	Dielectric Strength	Input Voltage VAC	Interrupting Capacity	Trip Time	Voltage Rating VAC	Voltage Rating VDC
1	1	W93-X112-30	Magnetic Hydraulic Circuit Breaker, W9 Series, 30 A, 3 Pole, 277 V, 20 s, 5 kA	W9 Series	TE CONNECTIVITY / POTTER & BRUMFIELD	Farnell or Newark	30A	277V	277V	3 Pole	Panel	1.5kV	277V	5kA	20s	277V	65V

Documentation

Technical Data Sheet

3D Product Image
