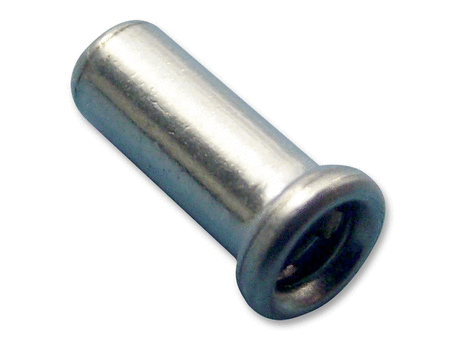

IC & Component Socket, Terminal, 1 Contacts, Gold Plated Contacts

Manufacturer	FARNELL
Description	IC & Component Socket, Terminal, 1 Contacts, Gold Plated Contacts
Part Number	1-5380758-1
Supplier Name	Farnell or Newark
Contact Material	Beryllium Copper
Contact Plating	Gold Plated Contacts
Contact Termination	Through Hole Vertical
Contact Termination Type	Through Hole
No. of Contacts	1Contacts

Brand Name	AMP - TE CONNECTIVITY
Connector Type	PCB Socket
Termination Method	Through Hole Vertical
Overall Length	7.54mm
Mounting Hole Dia	2.26mm
Terminal Plating	Tin
Insulation	Non Insulated
Length - Below Flange	6.65mm

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Contact Plating	Contact Termination	Contact Termination Type	No. of Contacts	Brand Name	Supplier Name	Connector Type	Termination Method	Overall Length	Mounting Hole Dia	Terminal Plating	Insulation	Length - Below Flange
1	1	1-5380758-1	IC & Component Socket, Terminal, 1 Contacts, Gold Plated Contacts	Beryllium Copper	Gold Plated Contacts	Through Hole Vertical	Through Hole	1Contacts	AMP - TE CONNECTIVITY	Farnell or Newark	PCB Socket	Through Hole Vertical	7.54mm	2.26mm	Tin	Non Insulated	6.65mm

Documentation

Drawing

3D Product Image
