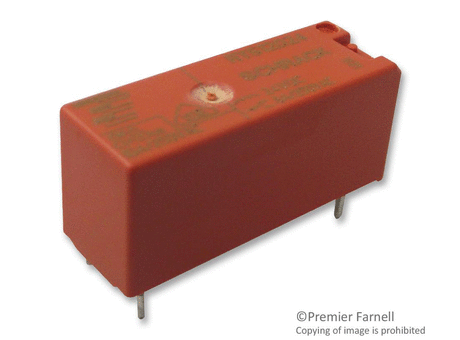

General Purpose Relay, RYII Series, Power, Non Latching, SPST-NO, 5 VDC, 8 A

Manufacturer	FARNELL
Description	General Purpose Relay, RYII Series, Power, Non Latching, SPST-NO, 5 VDC, 8 A
Part Number	RYA31005
Supplier Name	Farnell or Newark
Contact Configuration	SPST-NO
Contact Current Max	8A
Contact Voltage AC Nom	240V
Brand Name	SCHRACK - TE CONNECTIVITY
Contact Material	Silver Nickel
Product Range	RYII Series
Current Rating	8A
Operating Temperature Max	70°C
Operating Temperature Min	-40°C
Voltage Rating V AC	240V
Contact Current	8A
Lead Spacing	5mm
Approval Category	UL Recognised
External Length / Height	12.3mm
Approval Bodies	VDE
External Depth	10.1mm
External Width	28.5mm
Row Pitch	7.5mm
No. of Poles	1
Mounting Type	PCB

Coil Resistance	112ohm
Coil Type	Non Latching
Coil Voltage	5VDC
Coil Voltage VDC Nom	5V
Contact Current AC Max	8A
Contact Voltage AC Max	400V
Contact Voltage VAC	250VAC
DC Coil Power	200mW
Dielectric Voltage Coil to Contact	5000VAC
Dielectric Voltage Contact to Contact	1000VAC
External Height	12.3mm
Must Actuate Voltage	3.5VDC
No. of Pins	4Pins
Nom Operating Power	223mW
Operating Frequency Max	1200Hz
Operating Time	7ms
Relay Mounting	Through Hole
Relay Terminals	Solder
Relay Type	Power
Release Time	3ms
Switching Voltage AC / DC Max	400VAC
Approvals & Standards	VDE
Weight	8g

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Configuration	Contact Current Max	Contact Voltage AC Nom	Brand Name	Supplier Name	Contact Material	Product Range	Current Rating	Operating Temperature Max	Operating Temperature Min	Voltage Rating V AC	Contact Current	Lead Spacing	Approval Category	External Length / Height	Approval Bodies	External Depth	External Width	Row Pitch	No. of Poles	Mounting Type	Coil Resistance	Coil Type	Coil Voltage	Coil Voltage VDC Nom	Contact Current AC Max	Contact Voltage AC Max	Contact Voltage VAC	DC Coil Power	Dielectric Voltage Coil to Contact	Dielectric Voltage Contact to Contact	External Height	Must Actuate Voltage	No. of Pins	Nom Operating Power	Operating Frequency Max	Operating Time	Relay Mounting	Relay Terminals	Relay Type	Release Time	Switching Voltage AC / DC Max	Approvals & Standards	Weight
1	1	RYA31005	General Purpose Relay, RYII Series, Power, Non Latching, SPST-NO, 5 VDC, 8 A	SPST-NO	8A	240V	SCHRACK - TE CONNECTIVITY	Farnell or Newark	Silver Nickel	RYII Series	8A	70°C	-40°C	240V	8A	5mm	UL Recognised	12.3mm	VDE	10.1mm	28.5mm	7.5mm	1	PCB	112ohm	Non Latching	5VDC	5V	8A	400V	250VAC	200mW	5000VAC	1000VAC	12.3mm	3.5VDC	4Pins	223mW	1200Hz	7ms	Through Hole	Solder	Power	3ms	400VAC	VDE	8g
