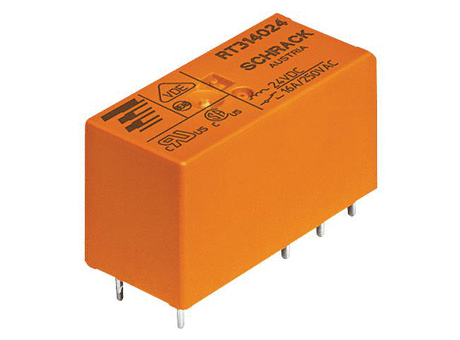

General Purpose Relay, RTH Series, Power, Non Latching, SPDT, 12 VDC, 16 A

Manufacturer	FARNELL
Description	General Purpose Relay, RTH Series, Power, Non Latching, SPDT, 12 VDC, 16 A
Part Number	RTH14012
Supplier Name	Farnell or Newark
Coil Resistance	360ohm
Coil Type	Non Latching
Coil Voltage	12VDC
Contact Configuration	SPDT
Contact Current	16A
Contact Current AC Max	16A
Contact Current Max	16A
Contact Material	Silver Nickel
Contact Voltage AC Max	250V
Contact Voltage AC Nom	250V
Contact Voltage VAC	250VAC
External Depth	29mm
External Height	15.7mm
External Length / Height	15.7mm
External Width	12.7mm
Mounting Type	PCB
No. of Poles	1

Nom Operating Power	400mW
Product Range	RTH Series
Relay Mounting	Through Hole
Relay Terminals	Solder
Relay Type	Power
Brand Name	SCHRACK - TE CONNECTIVITY
Coil Voltage VDC Nom	12V
Approval Bodies	CSA, VDE
Approval Category	UL Recognised
Flammability Rating	UL94 V-0
Lead Spacing	5mm
Operating Temperature Max	105°C
Operating Temperature Min	-40°C
DC Coil Power	400mW
Dielectric Voltage Coil to Contact	5000V
Dielectric Voltage Contact to Contact	1000V
Switching Voltage Max	400VAC
Must Actuate Voltage	8.4V
Must Release Voltage	1.2V
Operating Time	7ms
Release Time	3ms
