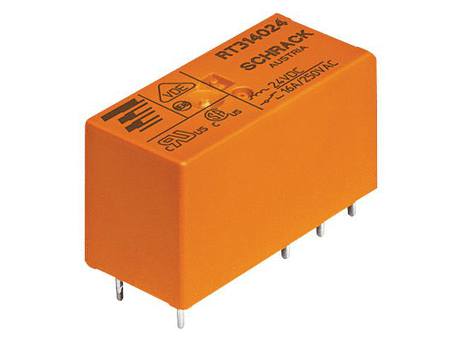

General Purpose Relay, Power PCB Relay RT1 Series, Power, Non Latching, SPDT

Manufacturer	FARNELL
Description	General Purpose Relay, Power PCB Relay RT1 Series, Power, Non Latching, SPDT
Part Number	RT114012
Supplier Name	Farnell or Newark
Approvals & Standards	CSA, UL, VDE
Coil Resistance	360ohm
Coil Type	Non Latching
Coil Voltage	12VDC
Contact Configuration	SPDT
Contact Current	12A
Contact Current Max	12A
Contact Material	Silver Nickel
Contact Voltage AC Nom	250V
Contact Voltage VAC	250VAC
External Depth	12.7mm
External Height	15.7mm
External Length / Height	15.7mm
External Width	29mm
Mounting Type	PCB
No. of Poles	1
Nom Operating Power	400mW

Product Range	Power PCB Relay RT1 Series
Relay Mounting	Through Hole
Relay Terminals	Solder
Relay Type	Power - General Purpose
Brand Name	SCHRACK - TE CONNECTIVITY
Coil Voltage VDC Nom	12V
Approval Bodies	BEAB, CSA, KEMA-KEUR, VDE
Approval Category	UL Recognised
Current Rating	12A
Voltage Rating V AC	250VAC
Lead Spacing	3.5mm
Operating Temperature Max	85°C
Operating Temperature Min	-40°C
DC Coil Power	400mW
Dielectric Voltage Coil to Contact	5000V
Dielectric Voltage Contact to Contact	1000V
Switching Voltage Max	400VAC
Operating Time	7ms
Release Time	3ms
No. of Pins	5Pins
Row Pitch	7.5mm
