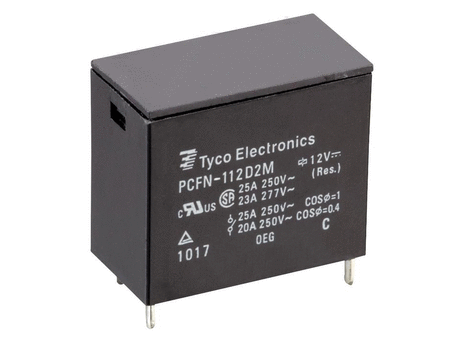

General Purpose Relay, PCF Series, Power, SPST-NO, 12 VDC, 26 A

Manufacturer	FARNELL
Description	General Purpose Relay, PCF Series, Power, SPST-NO, 12 VDC, 26 A
Part Number	PCFN-112H2MG,000
Supplier Name	Farnell or Newark
Contact Material	Silver Tin Oxide
Brand Name	OEG - TE CONNECTIVITY
Product Range	PCF Series
Coil Resistance	96ohm
Coil Voltage	12VDC
Coil Voltage VDC Nom	12V
Contact Configuration	SPST-NO

Contact Current	26A
Contact Current Max	26A
Contact Voltage AC Nom	277V
Contact Voltage VAC	277VAC
External Depth	30.4mm
External Height	26.5mm
External Width	16mm
Relay Mounting	Through Hole
Relay Terminals	Solder
Relay Type	Power

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Brand Name	Supplier Name	Product Range	Coil Resistance	Coil Voltage	Coil Voltage VDC Nom	Contact Configuration	Contact Current	Contact Current Max	Contact Voltage AC Nom	Contact Voltage VAC	External Depth	External Height	External Width	Relay Mounting	Relay Terminals	Relay Type
1	1	PCFN-112H2MG,000	General Purpose Relay, PCF Series, Power, SPST-NO, 12 VDC, 26 A	Silver Tin Oxide	OEG - TE CONNECTIVITY	Farnell or Newark	PCF Series	96ohm	12VDC	12V	SPST-NO	26A	26A	277V	277VAC	30.4mm	26.5mm	16mm	Through Hole	Solder	Power

Documentation

Drawing

Technical Data Sheet
