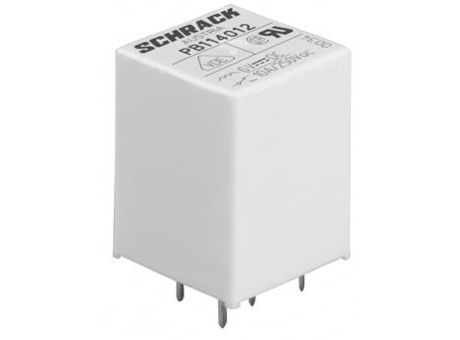

General Purpose Relay, PB Series, Power, Non Latching, SPDT, 24 VDC, 10 A

Manufacturer	FARNELL
Description	General Purpose Relay, PB Series, Power, Non Latching, SPDT, 24 VDC, 10 A
Part Number	PB114024
Supplier Name	Farnell or Newark
Contact Material	Silver Nickel
Product Range	PB Series
Brand Name	SCHRACK - TE CONNECTIVITY
Current Rating	10A
Contact Current	10A
External Depth	15mm
External Length / Height	20mm
External Width	15mm
Approval Bodies	VDE
Carry Current	10A
Coil Resistance	1.6kohm
Coil Type	Non Latching
Coil Voltage	24VDC
Coil Voltage DC Max	24V
Coil Voltage VDC Nom	24V
Contact Configuration	SPDT
Contact Current AC Max	10A
Contact Current DC Max	10A
Contact Current Max	10A
Contact Voltage AC Max	250V

Contact Voltage AC Nom	240V
Contact Voltage DC Max	100V
Contact Voltage VAC	250VAC
External Height	20mm
Mounting Type	PCB
No. of Poles	1
Nom Operating Power	360mW
Relay Mounting	Through Hole
Relay Terminals	Solder
Relay Type	Power - General Purpose
Approval Category	UL Recognised
Contact Rating	10A
DC Coil Power	360mW
Dielectric Voltage Coil to Contact	2500VAC
Dielectric Voltage Contact to Contact	1000VAC
Must Actuate Voltage	18V
Must Release Voltage	2.4V
Operating Temperature Max	85°C
Operating Temperature Min	-40°C
Operating Time	20ms
Release Time	20ms
Switching Capacity	2500 VA
Switching Voltage AC / DC Max	400VAC
Weight	5.4g
