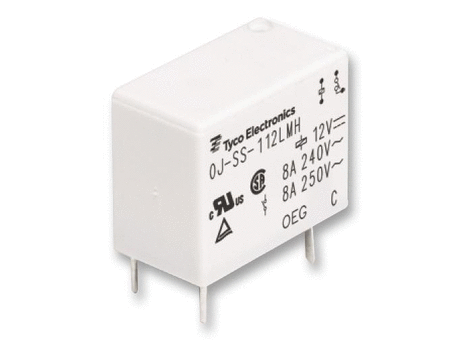

General Purpose Relay, OJE Series, Power, Non Latching, SPST-NO, 12 VDC, 8 A

Manufacturer	FARNELL
Description	General Purpose Relay, OJE Series, Power, Non Latching, SPST-NO, 12 VDC, 8 A
Part Number	OJE-SS-112LMH2
Supplier Name	Farnell or Newark
Contact Material	Silver Tin Oxide
Brand Name	OEG - TE CONNECTIVITY
Product Range	OJE Series
Approvals & Standards	VDE
Coil Resistance	720ohm
Coil Type	Non Latching
Coil Voltage	12VDC
Coil Voltage VDC Nom	12V
Contact Configuration	SPST-NO

Contact Current	8A
Contact Current Max	8A
Contact Voltage AC Nom	250V
Contact Voltage DC Nom	30V
Contact Voltage VAC	250VAC
Contact Voltage VDC	30VDC
External Depth	18.2mm
External Height	14.6mm
External Width	10.2mm
Relay Mounting	Through Hole
Relay Terminals	Solder
Relay Type	Power

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Brand Name	Supplier Name	Product Range	Approvals & Standards	Coil Resistance	Coil Type	Coil Voltage	Coil Voltage VDC Nom	Contact Configuration	Contact Current	Contact Current Max	Contact Voltage AC Nom	Contact Voltage DC Nom	Contact Voltage VAC	Contact Voltage VDC	External Depth	External Height	External Width	Relay Mounting	Relay Terminals	Relay Type
1	1	OJE-SS-112LMH2	General Purpose Relay, OJE Series, Power, Non Latching, SPST-NO, 12 VDC, 8 A	Silver Tin Oxide	OEG - TE CONNECTIVITY	Farnell or Newark	OJE Series	VDE	720ohm	Non Latching	12VDC	12V	SPST-NO	8A	8A	250V	30V	250VAC	30VDC	18.2mm	14.6mm	10.2mm	Through Hole	Solder	Power

Documentation

Drawing

Technical Data Sheet
