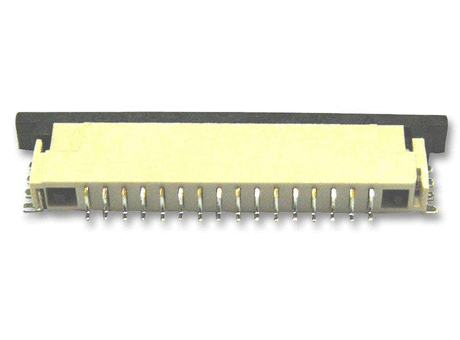

FFC / FPC Board Connector, 1 mm, 8 Contacts, Receptacle, FPC Series, Surface Mount, Top

Manufacturer	FARNELL
Description	FFC / FPC Board Connector, 1 mm, 8 Contacts, Receptacle, FPC Series, Surface Mount, Top
Part Number	84953-8
Supplier Name	Farnell or Newark
Contact Material	Phosphor Bronze
Product Range	FPC Series
Brand Name	AMP - TE CONNECTIVITY
Contact Plating	Tin Plated Contacts
Contact Termination	Surface Mount Right Angle
Contact Termination Type	Surface Mount
Gender	Receptacle
Packaging	Cut Tape

Body Plating	Tin
Colour	Natural
Flammability Rating	UL94V-0
Material	High Temp. Thermoplastic
No. of Contacts	8Contacts
Lead Spacing	1mm
No. of Rows	1Rows
Pitch Spacing	1mm
No. of Ways	8
FFC/FPC Thickness	0.3mm
Contact Position	Top

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Product Range	Brand Name	Supplier Name	Contact Plating	Contact Termination	Contact Termination Type	Gender	Packaging	Body Plating	Colour	Flammability Rating	Material	No. of Contacts	Lead Spacing	No. of Rows	Pitch Spacing	No. of Ways	FFC/FPC Thickness	Contact Position
1	1	84953-8	FFC / FPC Board Connector, 1 mm, 8 Contacts, Receptacle, FPC Series, Surface Mount, Top	Phosphor Bronze	FPC Series	AMP - TE CONNECTIVITY	Farnell or Newark	Tin Plated Contacts	Surface Mount Right Angle	Surface Mount	Receptacle	Cut Tape	Tin	Natural	UL94V-0	High Temp. Thermoplastic	8Contacts	1mm	1Rows	1mm	8	0.3mm	Top

Documentation

3D Product Image

Technical Data Sheet

Contact the supplier
