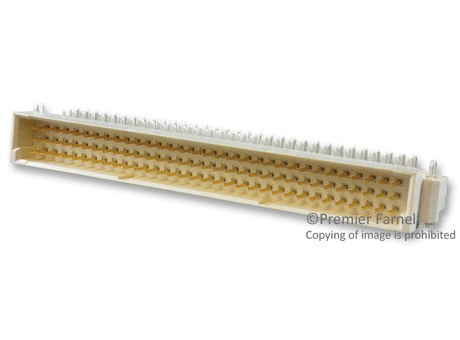

DIN 41612 Connector, Type C Series, 96 Contacts, Plug, 2.54 mm, 3 Row, a + b + c

Manufacturer	FARNELL
Description	DIN 41612 Connector, Type C Series, 96 Contacts, Plug, 2.54 mm, 3 Row, a + b + c
Part Number	5650913-5
Supplier Name	Farnell or Newark
Contact Material	Phosphor Bronze
Contact Plating	Gold Plated Contacts
Contact Termination	Solder
Contact Termination Type	Solder
Gender	Plug
No. of Contacts	96Contacts

No. of Rows	3Rows
Pitch Spacing	2.54mm
Product Range	Type C Series
Termination Method	Solder
Brand Name	AMP - TE CONNECTIVITY
Lead Spacing	2.54mm
Width	3.7"
Connector Type	DIN 41612
Rows Loaded	a + b + c
Termination Post Length	0.104"

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Contact Plating	Contact Termination	Contact Termination Type	Gender	No. of Contacts	No. of Rows	Pitch Spacing	Product Range	Termination Method	Brand Name	Supplier Name	Lead Spacing	Width	Connector Type	Rows Loaded	Termination Post Length
1	1	5650913-5	DIN 41612 Connector, Type C Series, 96 Contacts, Plug, 2.54 mm, 3 Row, a + b + c	Phosphor Bronze	Gold Plated Contacts	Solder	Solder	Plug	96Contacts	3Rows	2.54mm	Type C Series	Solder	AMP - TE CONNECTIVITY	Farnell or Newark	2.54mm	3.7"	DIN 41612	a + b + c	0.104"

Documentation

3D Product Image

Technical Data Sheet

Drawing
