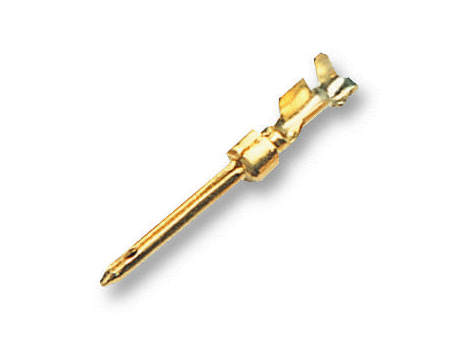

D Sub Contact, HDP-20 Series Connectors, Pin, Brass, Gold Plated Contacts, 24 AWG, 28 AWG

Manufacturer	FARNELL
Description	D Sub Contact, HDP-20 Series Connectors, Pin, Brass, Gold Plated Contacts, 24 AWG, 28 AWG
Part Number	66507-9
Supplier Name	Farnell or Newark
Contact Gender	Pin
Contact Plating	Gold Plated Contacts
Contact Resistance	15mohm
Contact Termination	Crimp
Contact Termination Type	Crimp
Current Rating	7.5A
Gender	Plug
Operating Temperature Max	105°C
Operating Temperature Min	-55°C
Product Range	AMPLIMITE HDP-20 Series

Wire Area Size Max	0.2mm²
Wire Area Size Min	0.08mm²
Brand Name	AMP - TE CONNECTIVITY
Accessory Type	Pin & Socket Contact
For Use With	HDP-20 Series Connectors
Contact Material	Brass
Wire Size AWG Max	24AWG
Wire Size AWG Min	28AWG
Cable Diameter Max	1.02mm
Cable Diameter Min	0.03"
Wire Size	24AWG
Wire Size (AWG)	28AWG to 24AWG
Contact Type	Stamped

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Gender	Contact Plating	Contact Resistance	Contact Termination	Contact Termination Type	Current Rating	Gender	Operating Temperature Max	Operating Temperature Min	Product Range	Wire Area Size Max	Wire Area Size Min	Brand Name	Supplier Name	Accessory Type	For Use With	Contact Material	Wire Size AWG Max	Wire Size AWG Min	Cable Diameter Max	Cable Diameter Min	Wire Size	Wire Size (AWG)	Contact Type
1	1	66507-9	D Sub Contact, HDP-20 Series Connectors, Pin, Brass, Gold Plated Contacts, 24 AWG, 28 AWG	Pin	Gold Plated Contacts	15mohm	Crimp	Crimp	7.5A	Plug	105°C	-55°C	AMPLIMITE HDP-20 Series	0.2mm²	0.08mm²	AMP - TE CONNECTIVITY	Farnell or Newark	Pin & Socket Contact	HDP-20 Series Connectors	Brass	24AWG	28AWG	1.02mm	0.03"	24AWG	28AWG to 24AWG	Stamped

Documentation

Drawing

Technical Data Sheet

3D Product Image

Contact the supplier
