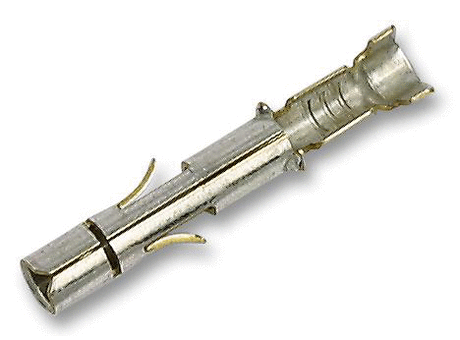

Contact, Universal MATE-N-LOK Series, Socket, Crimp, 14 AWG, Tin Plated Contacts

Manufacturer	FARNELL
Description	Contact, Universal MATE-N-LOK Series, Socket, Crimp, 14 AWG, Tin Plated Contacts
Part Number	926893-1
Supplier Name	Farnell or Newark
Contact Gender	Socket
Contact Plating	Tin Plated Contacts
Contact Termination	Crimp
Contact Termination Type	Crimp
Current Rating	19A
Gender	Receptacle
Product Range	Universal MATE-N-LOK Series
Wire Area Size Max	2.1mm²
Wire Area Size Min	0.5mm²
Brand Name	AMP - TE CONNECTIVITY

For Use With	Universal MATE-N-LOK Connectors
Material	Brass
Contact Material	Brass
Voltage Rating V AC	600V
Wire Size AWG Max	14AWG
Wire Size AWG Min	20AWG
Cable Diameter Max	3.3mm
Cable Diameter Min	1.5mm
Wire Size	20AWG
Wire Size (AWG)	20AWG to 14AWG
Wire Size Range (AWG)	20
Pack Quantity	100
Insulation Diameter Max	3.3mm
Insulation Diameter Min	1.5mm

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Gender	Contact Plating	Contact Termination	Contact Termination Type	Current Rating	Gender	Product Range	Wire Area Size Max	Wire Area Size Min	Brand Name	Supplier Name	For Use With	Material	Contact Material	Voltage Rating V AC	Wire Size AWG Max	Wire Size AWG Min	Cable Diameter Max	Cable Diameter Min	Wire Size	Wire Size (AWG)	Wire Size Range (AWG)	Pack Quantity	Insulation Diameter Max	Insulation Diameter Min
1	1	926893-1	Contact, Universal MATE-N-LOK Series, Socket, Crimp, 14 AWG, Tin Plated Contacts	Socket	Tin Plated Contacts	Crimp	Crimp	19A	Receptacle	Universal MATE-N-LOK Series	2.1mm²	0.5mm²	AMP - TE CONNECTIVITY	Farnell or Newark	Universal MATE-N-LOK Connectors	Brass	Brass	600V	14AWG	20AWG	3.3mm	1.5mm	20AWG	20AWG to 14AWG	20	100	3.3mm	1.5mm

Documentation

Drawing

Technical Data Sheet

3D Product Image
