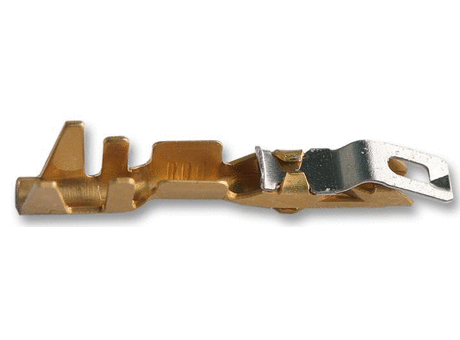

Contact, AMPMODU Series, Socket, Crimp, 28 AWG, Gold Plated Contacts, AMPMODU Machine Applied

Manufacturer	FARNELL
Description	Contact, AMPMODU Series, Socket, Crimp, 28 AWG, Gold Plated Contacts, AMPMODU Machine Applied
Part Number	87191-1
Supplier Name	Farnell or Newark
Connector Type	Wire to Board Contact
Contact Material	Phosphor Bronze
Contact Plating	Gold Plated Contacts
Contact Termination	Crimp
Contact Termination Type	Crimp
Product Range	AMPMODU Series
Brand Name	AMP - TE CONNECTIVITY
Insulator Material	Uninsulated

Contact Gender	Socket
For Use With	AMPMODU Interconnect System
Wire Size (AWG)	30AWG to 28AWG
Wire Size AWG Max	28AWG
Wire Size AWG Min	30AWG
Cable Diameter Max	0.99mm
Cable Diameter Min	0.74mm
Contact Size	28
Current Rating	3A
Wire Area Size Max	0.09mm²
Wire Area Size Min	0.05mm²
Wire Size	28AWG

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Connector Type	Contact Material	Contact Plating	Contact Termination	Contact Termination Type	Product Range	Brand Name	Supplier Name	Insulator Material	Contact Gender	For Use With	Wire Size (AWG)	Wire Size AWG Max	Wire Size AWG Min	Cable Diameter Max	Cable Diameter Min	Contact Size	Current Rating	Wire Area Size Max	Wire Area Size Min	Wire Size
1	1	87191-1	Contact, AMPMODU Series, Socket, Crimp, 28 AWG, Gold Plated Contacts, AMPMODU Machine Applied	Wire to Board Contact	Phosphor Bronze	Gold Plated Contacts	Crimp	Crimp	AMPMODU Series	AMP - TE CONNECTIVITY	Farnell or Newark	Uninsulated	Socket	AMPMODU Interconnect System	30AWG to 28AWG	28AWG	30AWG	0.99mm	0.74mm	28	3A	0.09mm²	0.05mm²	28AWG
