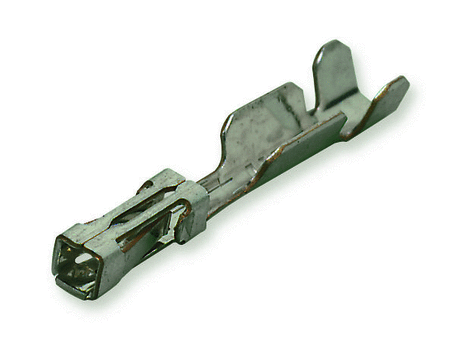

Contact, AMPMODU Mod IV Series, Socket, Crimp, 22 AWG, Tin Plated Contacts

Manufacturer	FARNELL
Description	Contact, AMPMODU Mod IV Series, Socket, Crimp, 22 AWG, Tin Plated Contacts
Part Number	87756-7
Supplier Name	Farnell or Newark
Current Rating	3A
For Use With	Mod IV Series Connectors
Gender	Receptacle
Height	11.3mm
Operating Temperature Max	105°C
Operating Temperature Min	-65°C
Product Range	AMPMODU Mod IV Series
Brand Name	AMP - TE CONNECTIVITY
Contact Termination	Crimp
Contact Material	Copper Alloy

Contact Plating	Tin Plated Contacts
Contact Termination Type	Crimp
Wire Size AWG Max	22AWG
Wire Size AWG Min	26AWG
Contact Gender	Socket
Cable Diameter Max	0.64mm
Contact Current	3A
Wire Size (AWG)	26AWG to 22AWG
Wire Area Size Max	0.4m²
Wire Area Size Min	0.12m²
Cable Diameter Min	0.4mm
Wire Size	22AWG
External Length / Height	11.3mm

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Current Rating	For Use With	Gender	Height	Operating Temperature Max	Operating Temperature Min	Product Range	Brand Name	Supplier Name	Contact Termination	Contact Material	Contact Plating	Contact Termination Type	Wire Size AWG Max	Wire Size AWG Min	Contact Gender	Cable Diameter Max	Contact Current	Wire Size (AWG)	Wire Area Size Max	Wire Area Size Min	Cable Diameter Min	Wire Size	External Length / Height
1	1	87756-7	Contact, AMPMODU Mod IV Series, Socket, Crimp, 22 AWG, Tin Plated Contacts	3A	Mod IV Series Connectors	Receptacle	11.3mm	105°C	-65°C	AMPMODU Mod IV Series	AMP - TE CONNECTIVITY	Farnell or Newark	Crimp	Copper Alloy	Tin Plated Contacts	Crimp	22AWG	26AWG	Socket	0.64mm	3A	26AWG to 22AWG	0.4m²	0.12m²	0.4mm	22AWG	11.3mm

Documentation

Drawing

Technical Data Sheet

3D Product Image
