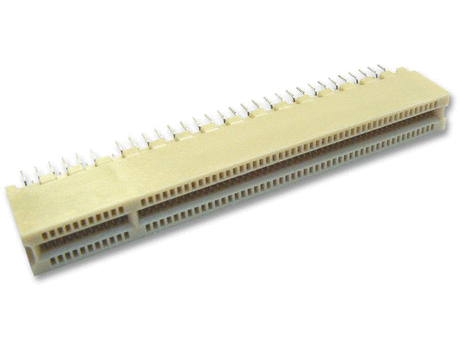

Connector, PCI Series, Rectangular Power, 120 Contacts, Receptacle, 1.27 mm, Through Hole

Manufacturer	FARNELL
Description	Connector, PCI Series, Rectangular Power, 120 Contacts, Receptacle, 1.27 mm, Through Hole
Part Number	5145154-4
Supplier Name	Farnell or Newark
Contact Material	Phosphor Bronze
Operating Temperature Max	85°C
Operating Temperature Min	-40°C
Product Range	PCI Series
Brand Name	AMP - TE CONNECTIVITY
Current Rating	1.1A
Contact Plating	Gold Plated Contacts
Contact Termination	Solder

Contact Termination Type	Through Hole
Gender	Receptacle
Connector Type	Card Edge
Colour	White
Material	High Temperature Thermoplastic
No. of Contacts	120Contacts
No. of Rows	2Rows
Pitch Spacing	1.27mm
Connector Mounting Orientation	PCB
No. of Mating Cycles	50
Voltage Rating V AC	3.3V
Row Pitch	2.54mm

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Operating Temperature Max	Operating Temperature Min	Product Range	Brand Name	Supplier Name	Current Rating	Contact Plating	Contact Termination	Contact Termination Type	Gender	Connector Type	Colour	Material	No. of Contacts	No. of Rows	Pitch Spacing	Connector Mounting Orientation	No. of Mating Cycles	Voltage Rating V AC	Row Pitch
1	1	5145154-4	Connector, PCI Series, Rectangular Power, 120 Contacts, Receptacle, 1.27 mm, Through Hole	Phosphor Bronze	85°C	-40°C	PCI Series	AMP - TE CONNECTIVITY	Farnell or Newark	1.1A	Gold Plated Contacts	Solder	Through Hole	Receptacle	Card Edge	White	High Temperature Thermoplastic	120Contacts	2Rows	1.27mm	PCB	50	3.3V	2.54mm

Documentation

Technical Data Sheet

Drawing

3D Product Image
