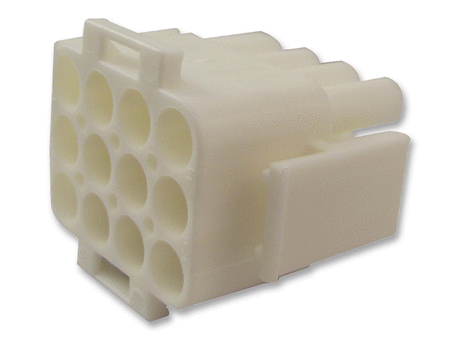

Connector Housing, Universal MATE-N-LOK Series, Plug, 12 Ways, 6.35 mm

Manufacturer	FARNELL
Description	Connector Housing, Universal MATE-N-LOK Series, Plug, 12 Ways, 6.35 mm
Part Number	350735-1
Supplier Name	Farnell or Newark
Connector Mounting	Free Hanging
Connector Type	Plug & Socket
Contact Resistance	3.5mohm
Current Rating	15A
Flammability Rating	UL94V-0
Gender	Plug
No. of Contacts	12Contacts
No. of Mating Cycles	50
Operating Temperature Max	105°C
Operating Temperature Min	-55°C
Product Range	Universal MATE-N-LOK Series

Working Voltage	600V
Brand Name	AMP - TE CONNECTIVITY
For Use With	Universal MATE-N-LOK Connectors
Material	Nylon
No. of Positions	12Positions
No. of Rows	3Rows
Voltage Rating V AC	600V
Colour	Opaque
Pitch Spacing	6.35mm
Dielectric Strength VAC	5000V
Housing Style	Matrix
Insulation Resistance	1000Mohm
Width	1.05"
Dielectric Strength VDC	10000V
Locking Style	Positive

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Connector Mounting	Connector Type	Contact Resistance	Current Rating	Flammability Rating	Gender	No. of Contacts	No. of Mating Cycles	Operating Temperature Max	Operating Temperature Min	Product Range	Working Voltage	Brand Name	Supplier Name	For Use With	Material	No. of Positions	No. of Rows	Voltage Rating V AC	Colour	Pitch Spacing	Dielectric Strength VAC	Housing Style	Insulation Resistance	Width	Dielectric Strength VDC	Locking Style
1	1	350735-1	Connector Housing, Universal MATE-N-LOK Series, Plug, 12 Ways, 6.35 mm	Free Hanging	Plug & Socket	3.5mohm	15A	UL94V-0	Plug	12Contacts	50	105°C	-55°C	Universal MATE-N-LOK Series	600V	AMP - TE CONNECTIVITY	Farnell or Newark	Universal MATE-N-LOK Connectors	Nylon	12Positions	3Rows	600V	Opaque	6.35mm	5000V	Matrix	1000Mohm	1.05"	10000V	Positive
