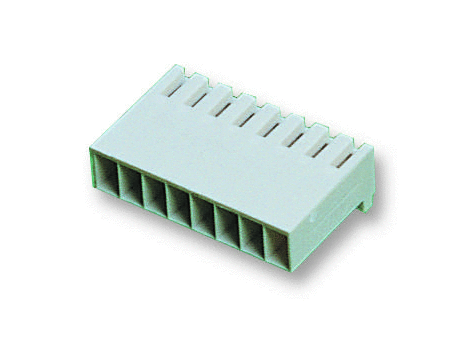

Connector Housing, CST-100 II Series, Receptacle, 2.54 mm

Manufacturer	FARNELL
Description	Connector Housing, CST-100 II Series, Receptacle, 2.54 mm
Part Number	1375820-5
Supplier Name	Farnell or Newark
Contact Material	Phosphor Bronze
Product Range	CST-100 II Series
Brand Name	AMP - TE CONNECTIVITY
Gender	Receptacle
Termination Method	Crimp
Contact Plating	Gold Plated Contacts

Diameter	0.52"
Colour	White
Lead Spacing	2.54mm
No. of Contacts	5Contacts
No. of Positions	5Positions
No. of Rows	1Rows
Pitch Spacing	2.54mm
Body Material	Nylon
Connecting Termination	Crimp

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Product Range	Brand Name	Supplier Name	Gender	Termination Method	Contact Plating	Diameter	Colour	Lead Spacing	No. of Contacts	No. of Positions	No. of Rows	Pitch Spacing	Body Material	Connecting Termination
1	1	1375820-5	Connector Housing, CST-100 II Series, Receptacle, 2.54 mm	Phosphor Bronze	CST-100 II Series	AMP - TE CONNECTIVITY	Farnell or Newark	Receptacle	Crimp	Gold Plated Contacts	0.52"	White	2.54mm	5Contacts	5Positions	1Rows	2.54mm	Nylon	Crimp

Documentation

Drawing

Technical Data Sheet

3D Product Image

Operating Instructions
