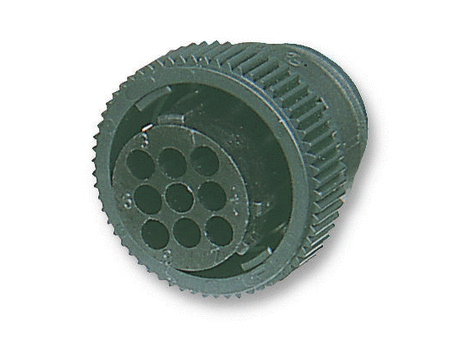

Circular Connector, CPC Series 1, Cable Mount Plug, 9 Contacts

Manufacturer	FARNELL
Description	Circular Connector, CPC Series 1, Cable Mount Plug, 9 Contacts
Part Number	182645-1
Supplier Name	Farnell or Newark
Connector Mounting	Cable Mount
Connector Type	Circular Industrial
Insulation Resistance	5000Mohm
Operating Temperature Max	105°C
Operating Temperature Min	-55°C
Working Voltage	250V
Brand Name	AMP - TE CONNECTIVITY
Colour	Black
Connector Body Material	Nylon (Polyamide) Body
Connector Shell Size	13

Product Range	CPC Series 1
Gender	Plug
No. of Contacts	9Contacts
Contact Gender	Socket
Approval Bodies	CSA, UL
Current Rating	13A
No. of Positions	9Ways
Voltage Rating V AC	250V
Voltage Rating V DC	250V
Flammability Rating	UL94V-0
Circular Connector Shell Style	Cable Mount Plug
Insert Arrangement	13-19
Circular Contact Type	Crimp Socket - Contacts Not Supplied
Coupling Style	Threaded

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Connector Mounting	Connector Type	Insulation Resistance	Operating Temperature Max	Operating Temperature Min	Working Voltage	Brand Name	Supplier Name	Colour	Connector Body Material	Connector Shell Size	Product Range	Gender	No. of Contacts	Contact Gender	Approval Bodies	Current Rating	No. of Positions	Voltage Rating V AC	Voltage Rating V DC	Flammability Rating	Circular Connector Shell Style	Insert Arrangement	Circular Contact Type	Coupling Style
1	1	182645-1	Circular Connector, CPC Series 1, Cable Mount Plug, 9 Contacts	Cable Mount	Circular Industrial	5000Mohm	105°C	-55°C	250V	AMP - TE CONNECTIVITY	Farnell or Newark	Black	Nylon (Polyamide) Body	13	CPC Series 1	Plug	9Contacts	Socket	CSA, UL	13A	9Ways	250V	250V	UL94V-0	Cable Mount Plug	13-19	Crimp Socket - Contacts Not Supplied	Threaded
