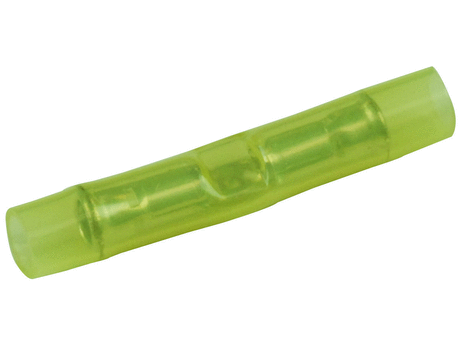

Butt Splice, Yellow, PIDG Series, 26 AWG, 22 AWG, 0.4 mm-¦, Nylon (Polyamide)

Manufacturer	FARNELL
Description	Butt Splice, Yellow, PIDG Series, 26 AWG, 22 AWG, 0.4 mm-¦, Nylon (Polyamide)
Part Number	8-323994-2
Supplier Name	Farnell or Newark
Connector Type	Butt Splice
Contact Material	Copper
Contact Plating	Tin Plated Contacts
Product Range	PIDG Series

Termination Method	Crimp
Brand Name	AMP - TE CONNECTIVITY
Wire Size AWG Max	22AWG
Wire Size AWG Min	26AWG
Insulator Material	Nylon (Polyamide)
Conductor Area CSA	0.4mm²
Insulator Colour	Yellow

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Connector Type	Contact Material	Contact Plating	Product Range	Termination Method	Brand Name	Supplier Name	Wire Size AWG Max	Wire Size AWG Min	Insulator Material	Conductor Area CSA	Insulator Colour
1	1	8-323994-2	Butt Splice, Yellow, PIDG Series, 26 AWG, 22 AWG, 0.4 mm-¦, Nylon (Polyamide)	Butt Splice	Copper	Tin Plated Contacts	PIDG Series	Crimp	AMP - TE CONNECTIVITY	Farnell or Newark	22AWG	26AWG	Nylon (Polyamide)	0.4mm²	Yellow

Documentation

Drawing

Technical Data Sheet

3D Product Image
