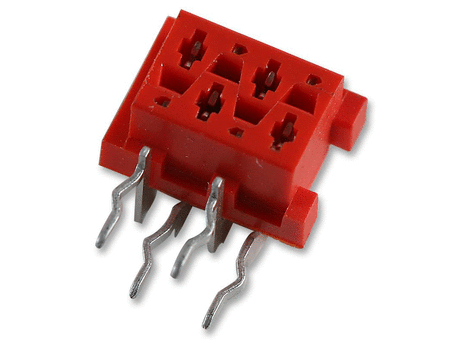

Board-To-Board Connector, 1.27 mm, 10 Contacts, Receptacle, Micro-MaTch Series, Through Hole

Manufacturer	FARNELL
Description	Board-To-Board Connector, 1.27 mm, 10 Contacts, Receptacle, Micro-MaTch Series, Through Hole
Part Number	8-215460-0
Supplier Name	Farnell or Newark
Contact Material	Phosphor Bronze
Contact Plating	Tin Plated Contacts
Contact Termination	Through Hole Right Angle
Contact Termination Type	Through Hole
Current Rating	1.5A
Gender	Receptacle
Operating Temperature Max	105°C
Operating Temperature Min	-40°C
Product Range	Micro-MaTch Series
Brand Name	AMP - TE CONNECTIVITY
Approval Bodies	UL

Material	Thermoplastic Polyester
Colour	Red
Contact Resistance	10mohm
Flammability Rating	UL94V-0
Insulation Resistance	1000Mohm
Lead Spacing	1.27mm
No. of Contacts	10Contacts
No. of Rows	2Rows
Pitch Spacing	1.27mm
Termination Method	Solder
Working Voltage	100V
No. of Poles	10
No. of Ways	10
Packaging	Cut Tape

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Contact Material	Contact Plating	Contact Termination	Contact Termination Type	Current Rating	Gender	Operating Temperature Max	Operating Temperature Min	Product Range	Brand Name	Supplier Name	Approval Bodies	Material	Colour	Contact Resistance	Flammability Rating	Insulation Resistance	Lead Spacing	No. of Contacts	No. of Rows	Pitch Spacing	Termination Method	Working Voltage	No. of Poles	No. of Ways	Packaging
1	1	8-215460-0	Board-To-Board Connector, 1.27 mm, 10 Contacts, Receptacle, Micro-MaTch Series, Through Hole	Phosphor Bronze	Tin Plated Contacts	Through Hole Right Angle	Through Hole	1.5A	Receptacle	105°C	-40°C	Micro-MaTch Series	AMP - TE CONNECTIVITY	Farnell or Newark	UL	Thermoplastic Polyester	Red	10mohm	UL94V-0	1000Mohm	1.27mm	10Contacts	2Rows	1.27mm	Solder	100V	10	10	Cut Tape

Documentation

Technical Data Sheet

Drawing

3D Product Image
