Round thread lead screw, Rondo with standard round thread

Manufacturer	EICHENBERGER GEWINDE
Description	Round thread lead screw, Rondo with standard round thread
Part number	RGS 6 x 2 RFM RH 51 G9 E M

CAD models

Request for quotation

Product selection

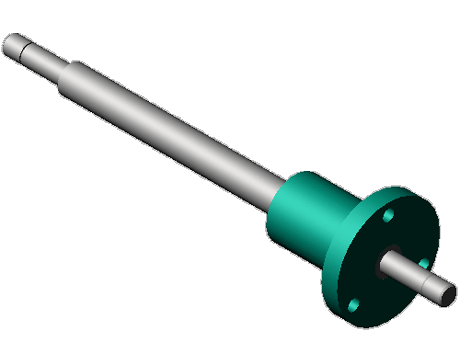

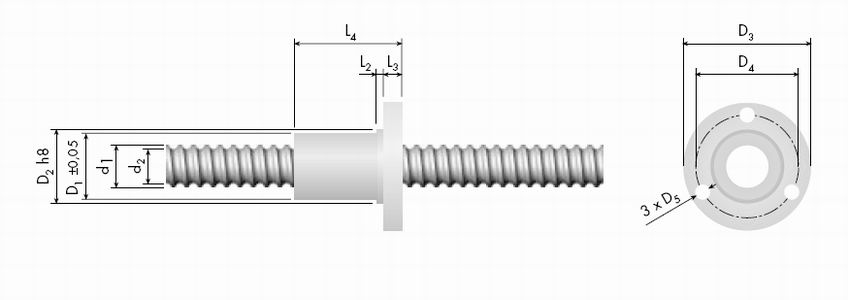

Index	Selector	d0 x p [mm]	thread	d1 [mm]	d2 [mm]	D1 [mm]	D2 [mm]	D3 [mm]	D4 limb [mm]	D5 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	Cstat [N]
1	1	6 x 2	RH	5.9	4.5	20.5	21	38	29	4.2	3	5	25	600
2	2	8 x 2	RH	7.9	6.5	20.5	21	38	29	4.2	3	5	25	800
3	3	10 x 3	RH	9.9	7.8	23.5	24	42	32	4.2	3	5	25	1200
4	4	12 x 3	RH	12	9.9	25.5	26	46	36	5.1	3	7	42	2000
5	5	12 x 4	RH	12	9.8	25.5	26	46	36	5.1	3	7	42	2500
6	6	14 x 3	RH	14	12	25.5	26	46	36	5.1	3	7	42	2400
7	7	14 x 4	RH	14	11.5	25.5	26	46	36	5.1	3	7	42	3200
8	8	16 x 5	RH	15.7	13	29.5	30	49	39	5.1	3	7	42	5000

Length of thread [mm]

Position of nut [mm]

Lead accuracy (class)

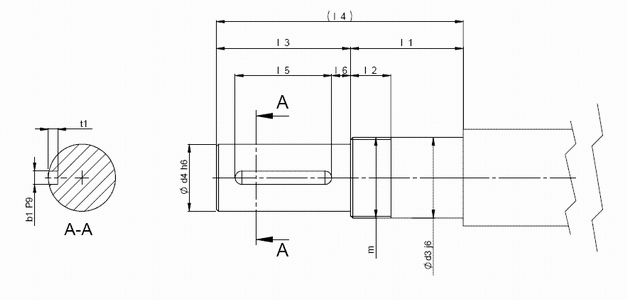

Index	Selector	End machining 1	d3 [mm]	M	l1 [mm]	l2 [mm]	l3 [mm]	l4 [mm]	d4 [mm]	l5 [mm]	l6 [mm]	b1 [mm]	t1 [mm]	d5 [mm]	d6 [mm]	l7 [mm]	l8 [mm]	l9 [mm]

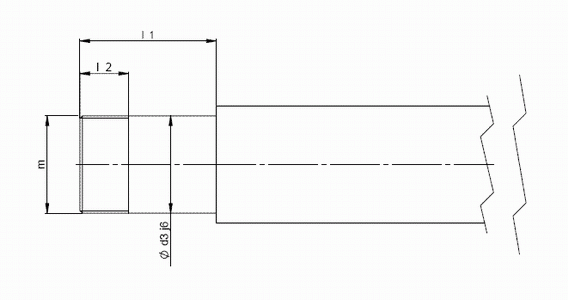

1	1	fixed F1.04	4	M4x0.5	13	6	6	19	3

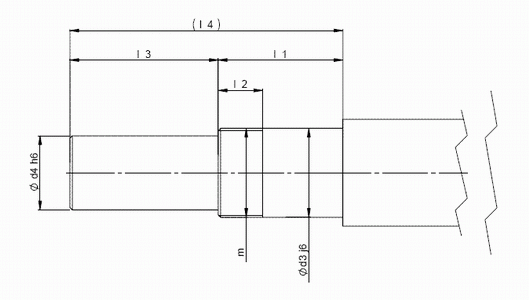

2	2	fixed F3.04	4	M4x0.5	13	6	6	19	3

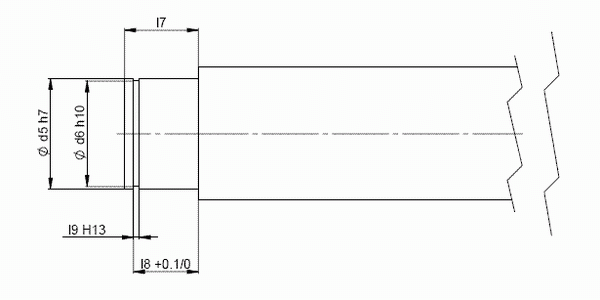

3	15	simple L1.04												4	3.8 h10	6	5.5	0.5

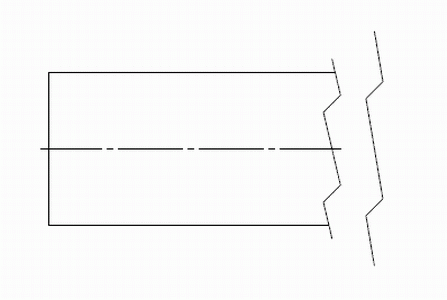

4	21	free K

Index	Selector	End machining 2	d3 [mm]	M	l1 [mm]	l2 [mm]	l3 [mm]	l4 [mm]	d4 [mm]	l5 [mm]	l6 [mm]	b1 [mm]	t1 [mm]	d5 [mm]	d6 [mm]	l7 [mm]	l8 [mm]	l9 [mm]
1	1	fixed F1.04	4	M4x0.5	13	6	6	19	3
2	2	fixed F3.04	4	M4x0.5	13	6	6	19	3
3	15	simple L1.04												4	3.8 h10	6	5.5	0.5
4	21	free K
