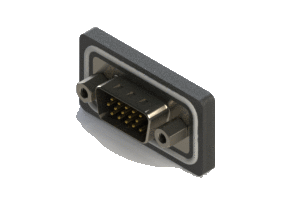

Waterproof High Density D-Sub Connectors, 637-W15-221-012

Manufacturer	EDAC Inc.
Description	Series 637W (waterproof) vertical D-Sub plug connector with 15 machined pin type contacts that have gold flash plating and P.C.B tails. The insulator is black and the shell is nickel plated.
Part Number	637-W15-221-012
Series	637W
Positions	15
Gender/Orientation	Plug - Vertical PCB Mount

Contact Description	P.C. Tail for High Density Type D-SUB
Contact Plating	Gold Flash Plating over Nickel
Shell Plating	Nickel Plated
Insulator Color	Black
Mounting Feature	#4-40 UNC Threaded Hole

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender/Orientation	Contact Description	Contact Plating	Shell Plating	Insulator Color	Mounting Feature
1	1	637-W15-221-012	637W	15	Plug - Vertical PCB Mount	P.C. Tail for High Density Type D-SUB	Gold Flash Plating over Nickel	Nickel Plated	Black	#4-40 UNC Threaded Hole

Documentation

Datasheet
