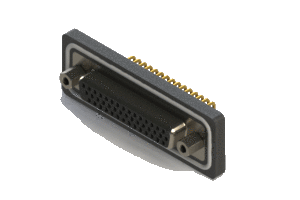

Waterproof High Density D-Sub Connectors, 634-W44-262-012

Manufacturer	EDAC Inc.
Description	Series 634W (waterproof) right angle D-Sub receptacle connector with 44 machined socket type contacts that have gold flash plating and P.C.B tails. The insulator is black and the shell is nickel plated.
Part Number	634-W44-262-012
Series	634W
Positions	44
Gender/Orientation	Receptacle - Right Angle

Contact Description	Right Angle Tail for High Density Type D-SUB
Contact Plating	Gold Flash Plating over Nickel
Shell Plating	Nickel Plated
Insulator Color	Black
Mounting Feature	#4-40 UNC Threaded Hole

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender/Orientation	Contact Description	Contact Plating	Shell Plating	Insulator Color	Mounting Feature
1	1	634-W44-262-012	634W	44	Receptacle - Right Angle	Right Angle Tail for High Density Type D-SUB	Gold Flash Plating over Nickel	Nickel Plated	Black	#4-40 UNC Threaded Hole

Documentation

Datasheet
