Waterproof D-Sub Connectors, 629-W15-240-015

Manufacturer	EDAC Inc.

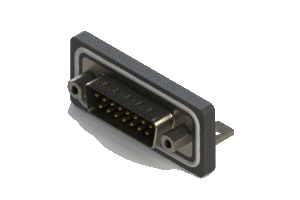

Description	Series 629W (waterproof) right angle D-Sub plug connector with 15 machined pin type contacts that have gold flash plating and P.C.B tails. The insulator is black and the shell is nickel plated.
Part Number	629-W15-240-015
Series	629W
Positions	15
Gender	Plug

Color	Black
Contact Plating	Gold Flash Plating over Nickel
Contact Code	Right Angle Tail, .405" (10.30mm) Footprint (9.4 Node)
Shell Plating	Nickel Plated
Board Mounting Feature	Bracket #4-40 UNC Without Boardlocks (Only for Right Angle Version)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Color	Contact Plating	Contact Code	Shell Plating	Board Mounting Feature
1	1	629-W15-240-015	629W	15	Plug	Black	Gold Flash Plating over Nickel	Right Angle Tail, .405" (10.30mm) Footprint (9.4 Node)	Nickel Plated	Bracket #4-40 UNC Without Boardlocks (Only for Right Angle Version)

Documentation

Datasheet
