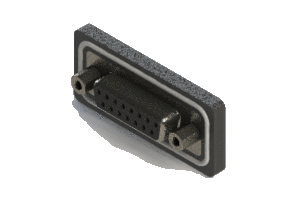

Vertical Waterproof D-Sub Connector, 628-W15-222-012

Manufacturer	EDAC Inc.
Description	Series 628W (waterproof) vertical D-Sub receptacle connector with 15 machined socket type contacts that have gold flash plating and solder cup tails. The insulator is black and the shell is nickel plated.
Part Number	628-W15-222-012
Series	628W
Positions	15
Gender	Receptacle (SOCKET)

Color	Black
Mounting Option	#4-40 UNC Threaded Hole
Contact Plating	Gold Flash Plating
Contact Code	Solder Cup Termination
Shell Plating	Nickel

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Color	Mounting Option	Contact Plating	Contact Code	Shell Plating
1	1	628-W15-222-012	628W	15	Receptacle (SOCKET)	Black	#4-40 UNC Threaded Hole	Gold Flash Plating	Solder Cup Termination	Nickel

Documentation

Datasheet
