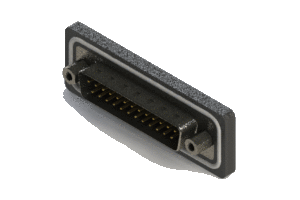

Vertical Waterproof D-Sub Connector, 627-W25-222-012

Manufacturer	EDAC Inc.
Description	Series 627W (waterproof) vertical D-Sub plug connector with 25 machined pin type contacts that have gold flash plating and solder cup tails. The insulator is black and the shell is nickel plated.
Part Number	627-W25-222-012
Series	627W
Positions	25
Gender	Plug (PIN)

Color	Black
Contact Plating	Gold Flash Plating
Contact Code	Solder Cup Termination
Shell Plating	Nickel
Board Mounting Feature	#4-40 UNC Threaded Hole

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Color	Contact Plating	Contact Code	Shell Plating	Board Mounting Feature
1	1	627-W25-222-012	627W	25	Plug (PIN)	Black	Gold Flash Plating	Solder Cup Termination	Nickel	#4-40 UNC Threaded Hole

Documentation

Datasheet
